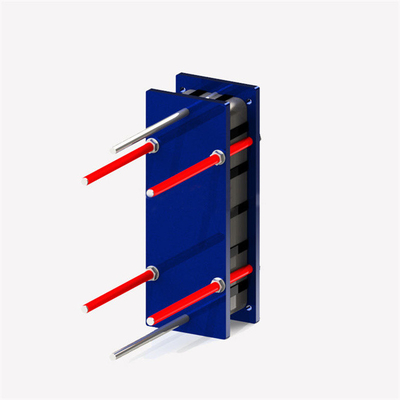

Factory Detachable Semi Welded Water to Air Gasket Plate Heat Exchanger
What is Semi-weld PHE?
The Semi-weld Plate heat exchanger plates are welded by laser. the laser welding means metal is melted by a laser beam from a high power laser. The charge is protected by irert gas Additional welding material is not required.
Semi-weld PHE
Semi-welded plate heat exchangers are commonly used in applications where there is a risk of cross-contamination between different fluids due to leaks or cracks in the heat exchanger. They are ideal for applications that require high heat transfer efficiency, such as refrigeration and cooling, heating, and HVAC systems.
The semi-welded plate heat exchanger consists of two types of plates: fully welded plates and gasketed plates. The fully welded plates are used to form the channels for the
high-pressure and high-temperature fluids, while the gasketed plates are used to separate the fluids and form the channels for the lower-pressure fluids. This design provides the advantages of both fully welded and gasketed plate heat exchangers, while eliminating their disadvantages.
| Materials | |
| Plates | 304/316L Stainless,Ti |
| Field gaskets | NBR, EPDM, FKM |
| Ring gaskets | NBR, EPDM, FKM |
| Flange connections | Carbon steel, Metal lined: Stainless, Ti |
| Frame plate | Carbon steel, epoxy painted |

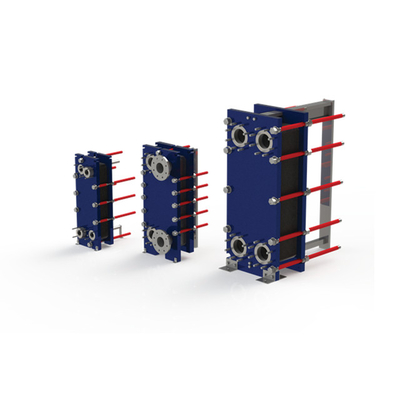

| Model | B60MW | B100MW | B150MW | B200MW | |
| Height, H [mm] | 920 | 1045 | 1484 | 2150 | |
| Width, W [mm] | 320 | 454 | 650 | 750 | |
| Max length, L [mm] | 1445 | 1795 | 3246 | 3250 | |
| Vertical port distance, VC [mm] | 640 | 719 | 1044 | 1478 | |
| Horizontal port distance, HC [mm] | 140 | 225 | 298 | 353 | |
| Max temperature [°C] | 180 | 180 | 180 | 180 | |
| Max pressure [barg] | 16/20 | 16/20 | 16/20 | 16/20 | |
| Port size | DN50/2' | DN100/4' | DN150/6' | DN200/8' | |
| Channel depth [mm] | 3 | 2.5 | 2.5 | 2.5 | |
| Max. water flow rate [kg/s] | 16 | 50 | 50 | 225 | |
Benefits
•High heat transfer efficiency: due to their large surface area and turbulent flow paths.
•Low risk of leakage: The fully welded channels reduce the risk of leakage and cross-contamination between different
fluids.
•Easy maintenance: Semi-welded plate heat exchangers can be easily disassembled and cleaned, allowing for easy
maintenance and reduced downtime.
•Versatile: Semi-welded plate heat exchangers can be used in a wide range of applications, including refrigeration and cooling, heating, and HVAC systems.
Applications
•Chemicals
•Energy and Utilities
•Food & Beverages
•HVAC& Refrigeration
•Marine and Transportation
•Mining
•Pulp and Paper
•Steel
•Water and Waste treatment
