Oil Cooler Heat Exchanger Heat Transfer Brazed Plate Heat Exchanger

High Performance Heat Transfer Brazed Plate Heat Exchanger Oil Cooler for Cooling Water

BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of pasteurizer heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of pasteurizer heat exchangers for any task.
Our main products are Brazed pasteurizer heat exchanger & Gasket pasteurizer heat exchanger & Air cross pasteurizer heat exchanger (Flat pasteurizer heat exchanger and frame and pasteurizer heat exchanger, welded pasteurizer heat exchanger). Braze pasteurizer heat exchanger include Copper brazed pasteurizer heat exchanger and Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the pasteurizer heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
Description

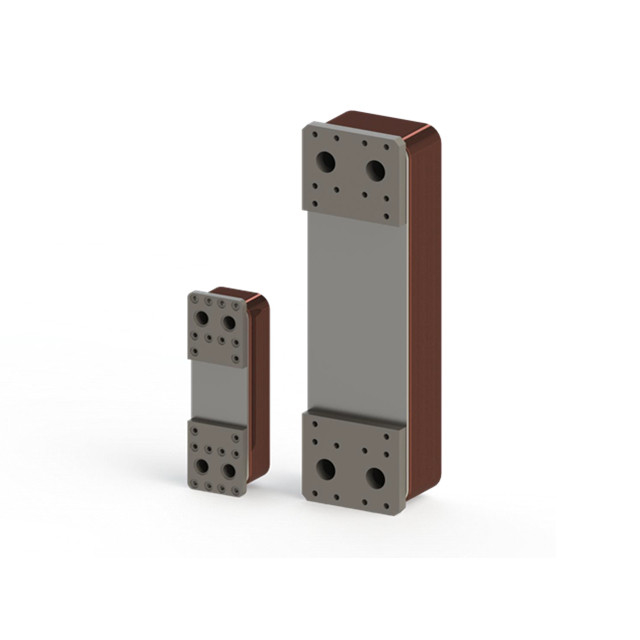

Baode DOC oil cooler are used to exchange heat between oil & collant. They are high performance components and provide a high level of efficiency combined with compact dimensions and low weight. Their efficiency reduces the amount of cooling water required for heat transfer which results in low operating costs.
Features
Plates and connections are manufactured from stainless steel to AISI 316, 1.4401, vacuum–brazed with copper / stainless. The special molding of the plates produces the turbulent flow necessary for effective heat transfer and provides the plate heat exchanger with a high level of mechanical strength. Nickel & Stainless brazed option available.
Operating Details
Medium:
•Water glycol (coolants)
•HFC operating fluids
•Water
•Oil
Contamination:
The quantity of particles in suspension should be less than 10 mg/l.
Particle size < 0.6 mm (spherical).
Thread–like particles cause a rapid rise in pressure drops.
Temperature Range:
•50° to 437°F (10° to 225°C)
(freezing point and boiling point must be taken into consideration!)
Pressure:
•Max Design pressure. 30bar / 45bar
•Test pressure: 45bar/60bar
Corrosion:
The following limits refer to a pH value of 7
•free chlorine, CL2 < 0.5 ppm
•chloride ions CL
< 700 ppm at 20 °C
< 200 ppm at 50 °C
Other Limits:
•ph 7 – 10
•sulphate SO4 2– <100 ppm
•[H CO3 –] / [SO4 2– ] >1
•ammonia, NH3 <10 ppm
•free CO < 10 ppm
The following ions are not corrosive under normal condi- tions: phosphate, nitrate, nitrite, iron, manganese, sodium and potassium
Applictions:
•Agricultural
•Automotive
•Construction
•Gearboxes
•Industrial
•Elevators
•Commercial Municipal
•Power Generation
•Pulp & Paper
•Railways
•Shipbuilding
•Steel / Heavy Industry

ModelBL1
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support

Certified by ISO9001, CE, UL, WRAS, RoHS, CCS etc.
