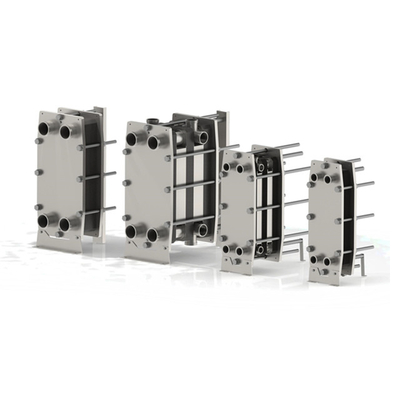

Stainless Steel Sanitary Plate Heat Exchanger Pasteurizer For Milk Used

Product Details:

Place of Origin:	China
Brand Name:	Baode
Certification:	CE UL ISO9001 CCS GL DNV LR
Model Number:	BS150

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	USD 100-1000 per Unit
Packaging Details:	Plywood case
Delivery Time:	14-18 work days
Payment Terms:	T/T
Supply Ability:	500 Unit/Units per Month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Juice Pasteurizer Pasteurizer For Milk Used Gasket Plate Heat Exchanger For Sale	Model Reference:	Replace SWEP
Plate Material:	Stainless Steel 316L / 304	Gasket Material:	NBR EPDM HEPDM FKM

Stainless Steel Juice Pasteurizer Pasteurizer for Milk Used Gasket Plate Heat Exchanger for Sale

Product Description

Working principle
The plate heat exchanger used for food pasteurization procedure is consists of a pack of corrugated metal plates with port holes for the passage of two fluids between which heat transfer will take place. The plate pack is assembled between a frame plate and a pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the channel and directs the fluids into alternate channels. The number of plates are determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure.

Frame
The plates and the pressure plate are located by an upper bar and a lower bar, both of which are fixed to the support column. On the largest type some tightening bolts are equipped with ball bearing washers in order to facilitate opening and closing of the unit. The frame is designed for mounting on a floor only. Standard feet are fixed. One unit can contain several sections, separated by connection plates with interchangeable connections.

Plates
The corrugation of the plates provides a passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer. Corner ports and gaskets are arranged so that the two media flow through alternate channels. The plates have a chevron pattern for maximum strength at high working pressures. Different chevron designs are available, in order to obtain optimal high heat transfer and low pressure drop. A unique distribution area provides an even flow over the plate surface. The plates are reversible and have parallel flow, which means only one type of plate is needed.

Dependable design
The BAODE gasketed plate heat exchangers provides gentle, yet efficient, heating and cooling and meets all sanitary requirements. Typical applications include dairy, food and beverage, and other sanitary processes such as:
Milk pasteurization and food pasteurization processing
Wine tempering
Bottled water treatment
CIP (Cleaning-in-Place) heating
Reverse osmosis water
Easy to modify

Modular design makes these standard plate heat exchangers easy to adapt to new or changing process requirements. Different plate types, plate materials, plate lengths, gasket materials and options make it adaptable choice for a wide range of hygienic processes.
You can, for instance, choose BAODE's B plate type for application that require the highest possible thermal efficiency. Or opt for our M plate type for applications that require gentler product treatment. Special sanitary-quality gaskets made of NBRFF and EPDFF are also available for hygienic processes.

High thermal efficiency
BAODE heat exchangers provide highly efficient heat transfer thanks to our unique thin plates with optimized chevron pattern, pressing depths and plate material. This provides more efficient and uniform heat transfer as well as uniform distribution of product across the entire surface of the plate. BAODE plates are available in a wide range of designs and sizes.
Easy cleaning and easy to service
BAODE plate heat exchangers come with features that make cleaning and service easy. Small ports, for example, make Cleaning-In-Place (CIP) possible without requiring the use of specialized pumps. Another great feature is our unique glue-less gasket system using FDA-compliant materials. Gaskets can easily be replaced while plates still hang on the frame, which saves both time and money.

Applications:
Cooling and heating of dairy, brewery, beverage and viscous products
and milk pasteurization and pasteurization in some applications

Advantage:
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
Made in China

Model	BS150
Height, H [mm]	1815
Width, W [mm]	610
Vertical port distance, VC [mm]	1294
Horizontal port distance, HC [mm]	298
Max. pressure [barg]	10/16

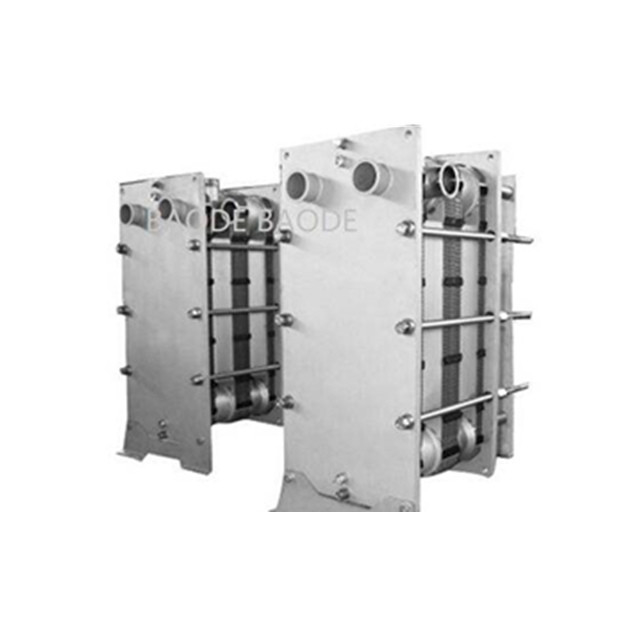

Stainless Steel Sanitary Plate Heat Exchanger Pasteurizer For Milk Used 2

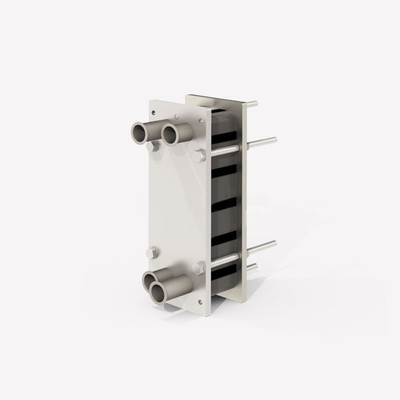

Stainless Steel Sanitary Plate Heat Exchanger Pasteurizer For Milk Used 3

Gasket
Material	Applicable Temp	Applicable fluids
BNR	-15°C to +135°C	Water, sea water, Mineral oil, salinous water
EPDM	-25°C to +180°C	Hot water, Steam, Acid, Alkali
F26	-55°C to +230°C	Acid, Alkali
FTP	0°C to +160°C	High Concentrated acid, Alkali, High temperature oil, Steam
