Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | Baode |
| Certification: | CCS/UL/CE |
| Model Number: | F-BL26 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 100-1000 per Unit |
| Packaging Details: | Plywood Box |
| Delivery Time: | 14-18 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Units per month |
| Product Name: | High Performance Refrigerant Brazed CO2 Plate Heat Exchanger For Air Conditioning | Main Application: | Transcortical Gas Cooling |
|---|---|---|---|
| Cover Plate: | Stainless Steel | Plate Material: | Stainless Steel |
| Connections: | Stainless Steel |
High Performance Refrigerant Brazed CO2 Plate Heat Exchanger for Air Conditioning
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of pasteurizer heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of pasteurizer heat exchangers for any task.
Our main products are Brazed pasteurizer heat exchanger & Gasket pasteurizer heat exchanger & Air cross pasteurizer heat exchanger (Flat pasteurizer heat exchanger and frame and pasteurizer heat exchanger, welded pasteurizer heat exchanger). Braze pasteurizer heat exchanger include Copper brazed pasteurizer heat exchanger and Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the pasteurizer heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
Introduction
BAODE F-BL SERIES BPHE is specifically designed to work in air conditioning and other refrigeration applications, where the pressure requirements are extremely high.
Applications
Because of their high-pressure performance, they are particularly well-suited to CO2 applications, such as transcortical gas cooling.
Benefits
•Tolerates extremely high operating pressures
•Compact
•Easy to install
•Self-cleaning
•Low level of service and maintenance is required
•All units are pressure and leak tested
•Gasket free
Design

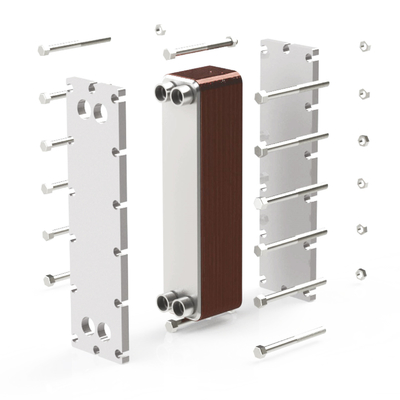

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life.

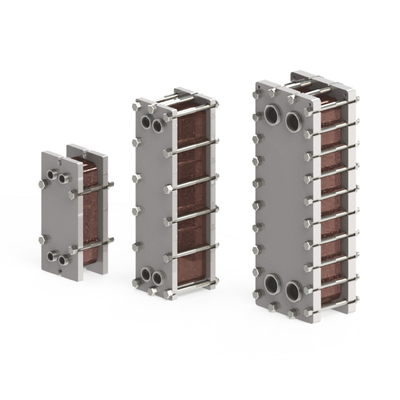

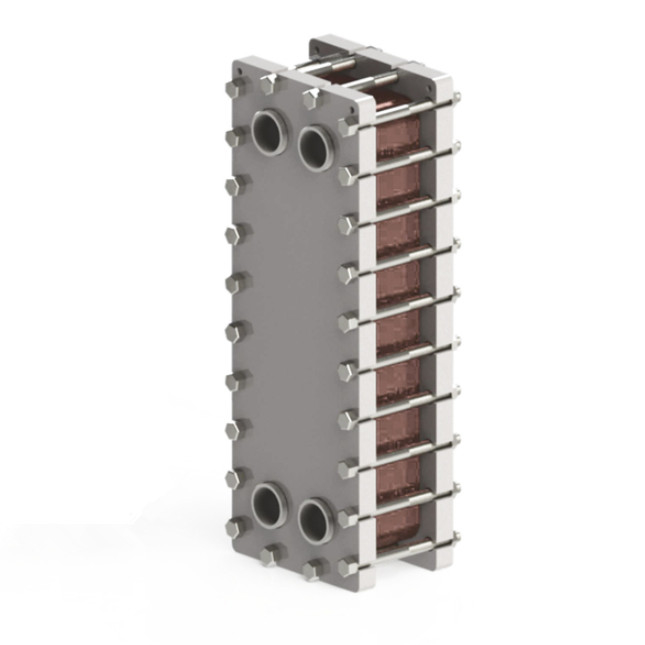

F-BL SERIES BPHE are brazed plate heat exchangers with thin external frames in carbon steel that are able to withstand extremely high operating pressures.
The unit can be supplied with a refrigerant distribution system.Always delivered with lifting lugs for easy handling.
| Dimensions (mm) | F-BL26 | F-BL50C | F-BL50D | F-BL95A | F-BL95B |
| A | 16 | 160 | 160 | 252 | 252 |
| B | 363 | 578 | 578 | 685 | 685 |
| C | 50250 | 50 | 50 | 92 | 92 |
| D | 13+(2.4*n) | 466 | 466 | 519 | 519 |
| E | 21+(0.13*n) | 14+(2.37*n) | 14+(2.37*n) | 23+(2.07*n) | 23+(2.07*n) |
| Distributor | No | No | Yes | Yes | No |
| Volume per channel, L (gal) | 0.05 (0.0132) | 0.095(0.0251) | 0.095(0.0251) | 0.18(0.0476) | 0.18(0.0476) |
| Max particle size, mm (inch) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1 (0.039) | 1 (0.039) |
| Max flow rate, m3/h (gpm) | 14 (61.6) | 14 (61.6) | 14 (61.6) | 51 (224.5) | 51 (224.5) |
| Flow direction Parallel | Parallel | Parallel | Parallel | Parallel | Parallel |
| Min. number of plates | 6 | 6 | 6 | 10 | 10 |
| Max. number of plate | 150 | 150 | 150 | 200 | 200 |
ModelBL1
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
Certified by ISO9001, CE, UL, WRAS, RoHS, CCS etc.
| Technical Data | |
| Standard materials | |
| Cover Plates | Stainless Steel |
| Connections | Stainless Steel |
| Plates | Stainless Stee |
| Brazing material | Copper 99.99% |
| External Frame | Carbon steel, Zinc electroplated |
| Max design pressure | 120 bar |
