Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | BAODE |
| Certification: | CE UL |
| Model Number: | M3 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 30~100 Per Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 14-18 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Units per Month |
| Product Name: | Spare Parts Replacement M3 Industrial NBR EPDM Gasket For Plate Heat Exchanger | Gasket: | NBR / EPDM / VITON |
|---|---|---|---|
| Installation Method Of Gasket: | Using Adhesives,mechanical Clamping | Warranty: | 1 Year |
| Gasket Type: | Clip-on, Loc-in And Glued |
Spare Parts Replacement M3 Industrial NBR EPDM Gasket for Plate Heat Exchanger
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of pasteurizer heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of pasteurizer heat exchangers for any task
Our main products are Brazed pasteurizer heat exchanger & Gasket pasteurizer heat exchanger & Air cross pasteurizer heat exchanger (Flat pasteurizer heat exchanger and frame and pasteurizer heat exchanger, welded pasteurizer heat exchanger). Braze pasteurizer heat exchanger include Copper brazed pasteurizer heat exchanger and Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the pasteurizer heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
Heat Exchanger Plates , also known as plate heat exchanger plate or plate heat exchanger fin, is the most important component of plate heat exchanger, and it is a part for measuring the heat transfer efficiency of plate heat exchanger. Its quality directly affects the heat transfer effect and overall performance of plate heat exchangers.
Heat exchanger gasket
The plate heat exchanger realizes the sealing between plates through the sealing gasket, which prevents the leakage of fluid and can bear certain pressure. At the same time, the two kinds of media flow through their own channels through the sealing gasket, without mixing with each other. Therefore, the quality of the gasket plays a very important role in the use quality of the plate heat exchanger. The ability of the plate heat exchanger to bear internal pressure and the degree of temperature resistance are basically determined by the gasket.
Baode has a wide variety of domestic plate heat exchanger plates, more models! It can provide all common types of plate heat exchanger plates from well-known brands at home and abroad.

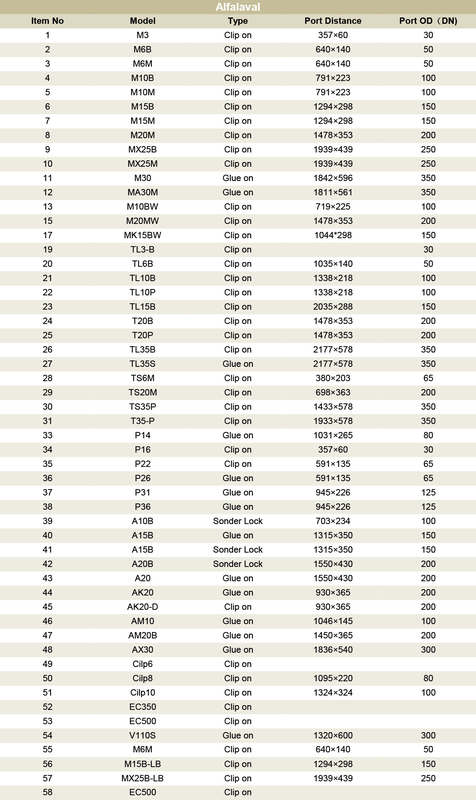

| Alfalaval | |||
Model | Type | Port Distance | Port OD(DN) |
| M3 | Clip on | 357×60 | 30 |
| M6B | Clip on | 640×140 | 50 |
| M6M | Clip on | 640×140 | 50 |
| M10B | Clip on | 791×223 | 100 |
| M10M | Clip on | 791×223 | 100 |
| M15B | Clip on | 1294×298 | 150 |
| M15M | Clip on | 1294×298 | 150 |
| M20M | Clip on | 1478×353 | 200 |
| MX25B | Clip on | 1939×439 | 250 |
| MX25M | Clip on | 1939×439 | 250 |
And others...
| Gasket | ||
| Material | Applicable Temp | Applicable fluids |
| NBR | -15°C to +135°C | Water, Sea water, Mineral oil,Salinous water |
| EPDM | -25°C to +180°C | Hot water, Steam Acid, Alkali |
| F26 | -55°C to +230°C | Acid,AIkali |
| FTP | 0°C to +160°C | High Concentrated acid,AIkali,High temmpereture oil, steam |
