Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | BAODE |
| Certification: | CE UL |
| Model Number: | PVX-38 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 100~1500 Per Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 14-18 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Units per Month |
| Product Name: | High Quality Aquarium Chiller Cooling Coil Heat Exchanger Titanium PVC Shell For Aquaculture | Material: | Titanium |
|---|---|---|---|
| Outer Shell: | PVC Plastic | Key Selling Points: | Corrosion Resistant |
| Warranty: | 1 Year |

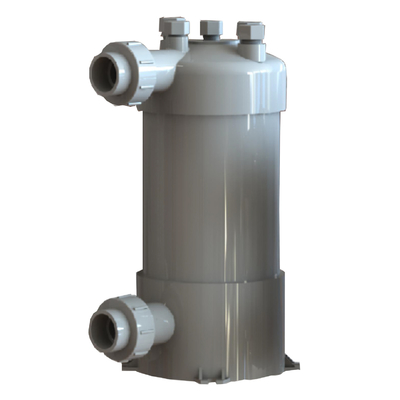

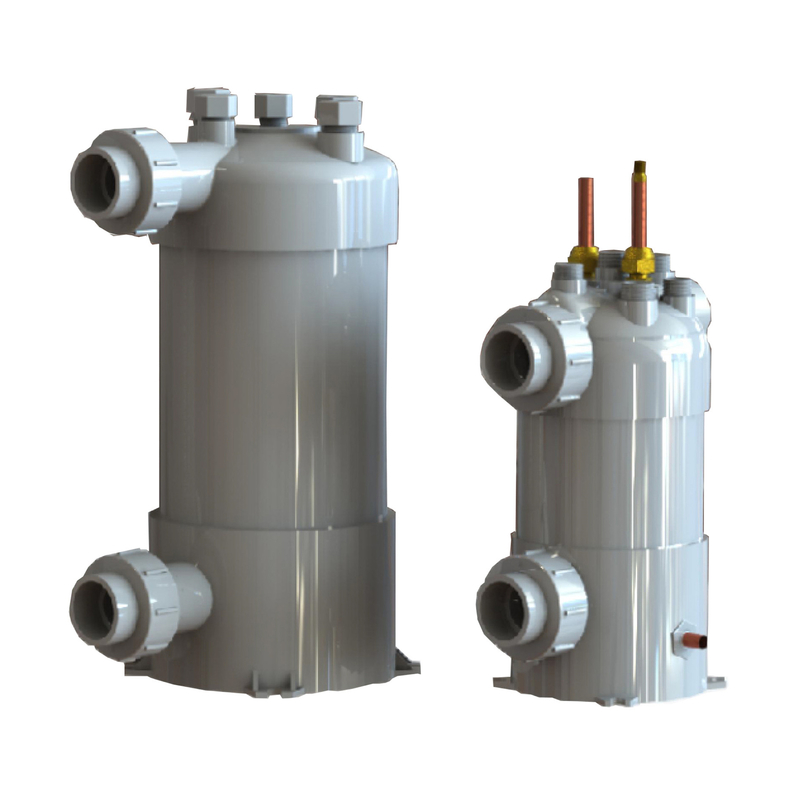

High Quality Aquarium Chiller Cooling Coil Heat Exchanger Titanium PVC Shell For Aquaculture
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of pasteurizer heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of pasteurizer heat exchangers for any task
Our main products are Brazed pasteurizer heat exchanger & Gasket pasteurizer heat exchanger & Air cross pasteurizer heat exchanger (Flat pasteurizer heat exchanger and frame and pasteurizer heat exchanger, welded pasteurizer heat exchanger). Braze pasteurizer heat exchanger include Copper brazed pasteurizer heat exchanger and Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the pasteurizer heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
Corrosion resistant heat exchangers for swimming pool heaters, aquariums, aquaculture, waste heat recovery, water source geothermal heat exchange, and other non-potable water heating or heat transfer use with PVC compati- ble working fluids.
All models use 6mm thick PVC shell with TA1 pure titanium seamless tube. Compatible with all CFC, HCFC, and HFC refrigerants.
Designed for use with highly chlorinated water and salt water.
Application
Our products are mainly used in seafood breeding, chemical plating, pool heat pump and other fields, to provide customers with high-quality products and services, products can provide customized services.
Titanium tube heat exchanger is a special equipment for corrosion resistant places such as swimming pool, seawater and aquaculture plants
The corrosion resistance of titanium is strong, the tube heat exchanger effectively extends the service life of the heat exchanger in special occasions, and the maintenance cost is less, and it also has the advantages of small volume and large heat exchange capacity. Iron tube heat exchangers can be widely used in swimming pools, aquariums, farms, seawater baths, electroplating tanks, Marine heating and cooling equipment and chemical equipment cooling system temperature control. It can also be used for the main purpose of anti-corrosion fields, such as seawater utilization and surface treatment industries. In addition, the use of metal ions do not lose this feature, titanium tube heat exchangers are also used in food, distilled water, pure water, brewing, beer, beverages, soilless cultivation, pharmaceuticals, cosmetics and industries. It can also be used in the field of environmental protection, such as waste gas condensation recovery, pollutant (solvent) recovery and so on.
|
Water side temp. range |
32 - 113F |
| Water side max. pressure | 72 PSI |
| Refrigerant side temp. range | -58 - 248F |
| Refrigerant side max pressure | 740 PSI |
| Model | Capcity (KW) | Water Flow Rate (m³/h) | A (mm) | B (mm) | C (mm) | PVC Shell (mm) | Tube Size (mm) | Tube Length (m) |
Gas Connection (mm) | Water Connection |
| PVX-38 | 3.8 | 1.8 | 70 | 170 | 380 | φ110*330 | 12.7 | 3 | φ12.7/φ12.7 | ϕ50 PVC thread |
| PVX-45 | 5 | 2 | 70 | 235 | 445 | φ110*405 | 12.7 | 4.9 | φ12.7/φ12.7 | |
| PVX-95 | 9.5 | 4.2 | 70 | 285 | 495 | φ110*495 | 12.7 | 6.5 | φ12.7/φ12.7 | |
| PVX-120 | 12 | 5.5 | 70 | 350 | 560 | φ160*470 | 12.7 | 8.4 | φ12.7/φ12.7 | |
| PVX-140 | 14 |
6.2 |
80 | 375 | 595 | φ160*510 | 12.7 | 10.5 | φ12.7/φ12.7 | |
| PVX-170 | 17 | 7.5 | 80 | 360 | 585 | φ200*520 | 16 | 9.8 | φ12.7/φ12.7 | |
| PVX-210 | 21 | 9.2 | 80 | 370 | 595 | φ200*530 | 19 | 10 | φ12.7/φ19 | |
| PVX-250 | 25 | 12 | 80 | 400 | 625 | φ200*560 | 19 | 12.5 | φ12.7/φ19 | |
| PVX-300 | 30 | 14 | 80 | 430 | 650 | φ200*590 | 19 | 15 | φ12.7/φ19 | |
| PVX-360 | 36 | 15 | 80 | 450 | 660 | φ200*610 | 19 | 17 | φ12.7/φ19 |
