Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | Baode |
| Certification: | CE/UL |
| Model Number: | CP series |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 1000~10000 Per Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 14-18 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Unit/Units per Month |

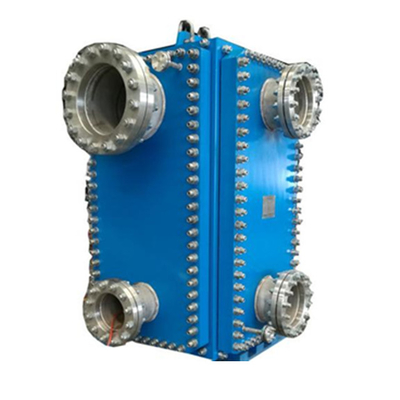

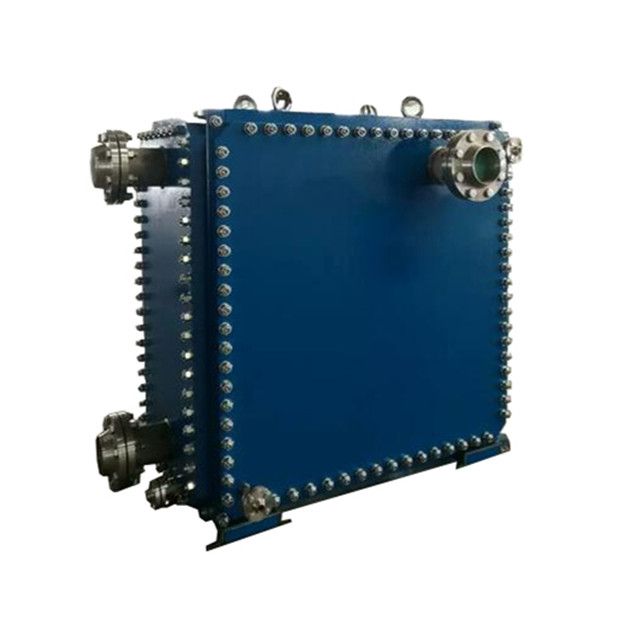

| Product Name: | High Heat Exchange Efficiency Compabloc Heat Exchanger Design For Chemical Fiber | Applications: | Condensation In Vapour Recovery Units |
|---|---|---|---|
| Refineries: | Reboiling In H2S Strippers, Sour Water Strippers And Other Columns | Benifits: | Reduce Installation Costs And Resolves Bottlenecks For Increased Production |
Product Description
Fully welded plate heat exchangers are divided into non-detachable fully welded plate heat exchangers, 2-sided detachable fully welded plate heat exchangers, 4-sided detachable fully welded plate heat exchangers (Compbloc) and wide channel fully welded plate heat exchangers .
Read below to learn more about some of the common ways that customers all over the globe use Compabloc heat exchangers to improve the sustainability of their operations.
Condensing duties
Compabloc’s short flow path and large cross-flow area ensure low pressure drop and high efficiency, making it ideal for condensing duties. High heat transfer rates and low fouling, make Compabloc the best choice for long-term efficiency and consistent performance. As a result, Compabloc performs condensing duties 2-4 times more efficiently than traditional solutions.
Vapour enters from the top of the unit and condenses on the cold plates as it passes through the plate pack, with condensate exiting at the bottom.
If the vapour contains non-condensable gases, can design a two-pass arrangement on the condensing side that permits gas/liquid separation inside Compabloc, eliminating any need for a separator unit. Condensation takes place primarily in the first pass.
Sub-cooling of non-condensable gases is achieved in the second pass, which also serves as a mist eliminator.
Advantages:
Fully Welded without Gasket
High Temperature /Pressure Resistance
High Heat Exchange Efficiency
Compact Structure:
Light Weight with Small Footprint
Recommended Applications:
Petrochemical
Oil & Gas
Energy Power
Metallurgy
Biomedical
Baode company specializes in supplying various types of gasket plate heat exchanger, brazed plate heat exchanger, frame and plate heat exchanger gasket, providing cleaning services and refurbishing solutions. The products are widely used in power, metallurgy, chemical industry, food and beverage, sugar making, paper making, textile, Marine, heating and air conditioning, refrigeration and other fields. We are willing to work with you to discuss your various problems in the application of heat exchange system, to give you quality service.
| Model | Standard Pressure (bar) | Standard Temp. Range (°C) | Max.Dimension (mm) A*A*B |
| CP15 | FV-32 | -40 - 300 | 280*280*540 |
| CP20 | FV-32 | -40 - 300 | 430*430*730 |
| CP30 | FV-32 | -40 - 300 | 500*500*1070 |
| CP40 | FV-32 | -40 - 300 | 600*600*1400 |
| CP50 | FV-32 | -40 - 300 | 840*840*2050 |
| CP75 | FV-32 | -40 - 300 | 1240*1240*3600 |
| CP120 | FV-32 | -40 - 300 | 2190*2190*3500 |
