Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | BAODE |
| Certification: | CE UL |
| Model Number: | PVX-95 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 100~1500 Per Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 14-18 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Units per Month |
| Product Name: | Industrial PVC Shell Titanium Tube Evaporator Coil Heat Exchanger For Aquarium Chiller Heat Pumps | Material: | Titanium |
|---|---|---|---|
| Outer Shell: | PVC Plastic | Key Selling Points: | Corrosion Resistant |
| Warranty: | 1 Year |

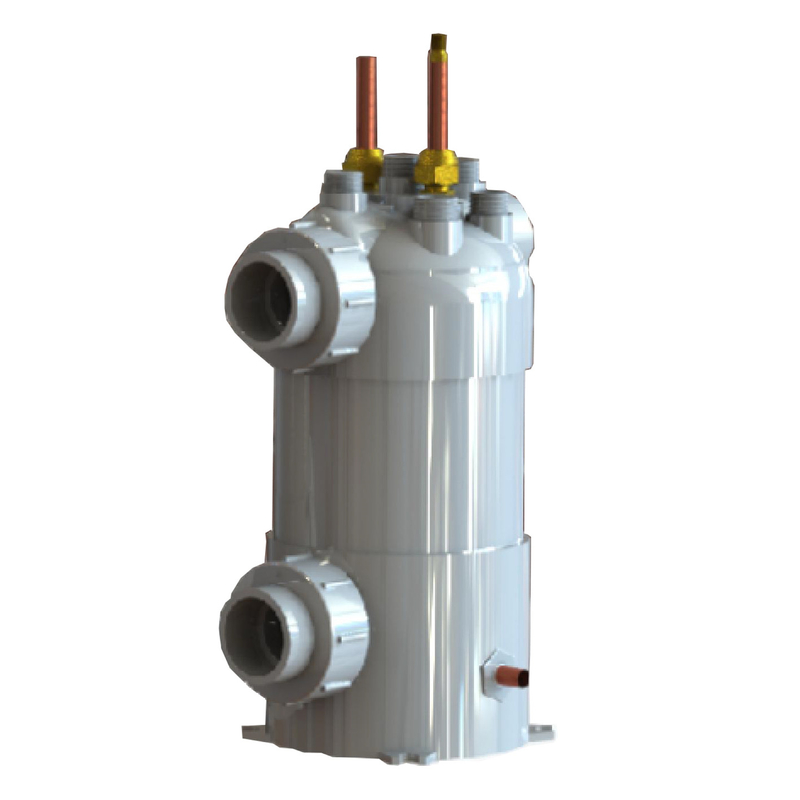

Industrial PVC shell titanium tube evaporator coil heat exchanger for aquarium chiller heat pumps
Titanium heat exchanger is made of high quality titanium pipe. In terms of physical properties, titanium tubes have many advantages such as light weight and superior mechanical properties. The strength of titanium is large, and the tensile strength of pure titanium can reach 180kg/mm2. Some steels are stronger than titanium alloys, but the specific strength of titanium alloys (the ratio of tensile strength to density) exceeds that of high-quality steels. In addition, titanium alloys have good thermal strength, low temperature toughness and fracture toughness.
Titanium material has the super strong corrosion resistant ability. Our titanium heat exchanger use seamless pure titanium tube as heat conductor, exhibits outstanding resistance to corrosion in a wide range of aggressive media.
Due to its good properties ,the titanium heat exchanger widely used in: Swimming pool equipment, Aquarium chiller, Marine refrigerant system, Solar energy heater, Aquaculture, Pharmacy, Food industry, Electroplating industry and some heat recovery from the waste water or exhaust gas.
Titanium heat exchangers are not easy to lose metal ions, so they can make full use of this non-magnetic characteristics and be used as heat exchangers for pharmaceutical and food purposes. Due to the strong corrosion resistance of titanium, the service life of the heat exchanger is long, and the maintenance cost is less in use. In addition, because of its small size, large heat transfer capacity and other advantages, the investment and operating costs of related equipment (such as pumps) can also be reduced accordingly.
|
Water side temp. range |
32 - 113F |
| Water side max. pressure | 72 PSI |
| Refrigerant side temp. range | -58 - 248F |
| Refrigerant side max pressure | 740 PSI |
| Model | Capcity (KW) | Water Flow Rate (m³/h) | A (mm) | B (mm) | C (mm) | PVC Shell (mm) | Tube Size (mm) | Tube Length (m) |
Gas Connection (mm) | Water Connection |
| PVX-38 | 3.8 | 1.8 | 70 | 170 | 380 | φ110*330 | 12.7 | 3 | φ12.7/φ12.7 | ϕ50 PVC thread |
| PVX-45 | 5 | 2 | 70 | 235 | 445 | φ110*405 | 12.7 | 4.9 | φ12.7/φ12.7 | |
| PVX-95 | 9.5 | 4.2 | 70 | 285 | 495 | φ110*495 | 12.7 | 6.5 | φ12.7/φ12.7 | |
| PVX-120 | 12 | 5.5 | 70 | 350 | 560 | φ160*470 | 12.7 | 8.4 | φ12.7/φ12.7 | |
| PVX-140 | 14 |
6.2 |
80 | 375 | 595 | φ160*510 | 12.7 | 10.5 | φ12.7/φ12.7 | |
| PVX-170 | 17 | 7.5 | 80 | 360 | 585 | φ200*520 | 16 | 9.8 | φ12.7/φ12.7 | |
| PVX-210 | 21 | 9.2 | 80 | 370 | 595 | φ200*530 | 19 | 10 | φ12.7/φ19 | |
| PVX-250 | 25 | 12 | 80 | 400 | 625 | φ200*560 | 19 | 12.5 | φ12.7/φ19 | |
| PVX-300 | 30 | 14 | 80 | 430 | 650 | φ200*590 | 19 | 15 | φ12.7/φ19 | |
| PVX-360 | 36 | 15 | 80 | 450 | 660 | φ200*610 | 19 | 17 | φ12.7/φ19 |
