| Place of Origin: | China |
| Brand Name: | Baode |
| Certification: | CE UL ISO9001 CCS GL DNV LR |
| Model Number: | BS150 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 100-1000 per Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 14-18 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Product Name: | Stainless Steel Industrial Sanitary Liquid Milk Plate Heat Exchanger Pasteurizer Steam Plate Heat Exchanger | Model Reference: | Replace SWEP |
|---|---|---|---|
| Plate Material: | Stainless Steel 316L / 304 | Gasket Material: | NBR EPDM HEPDM FKM |

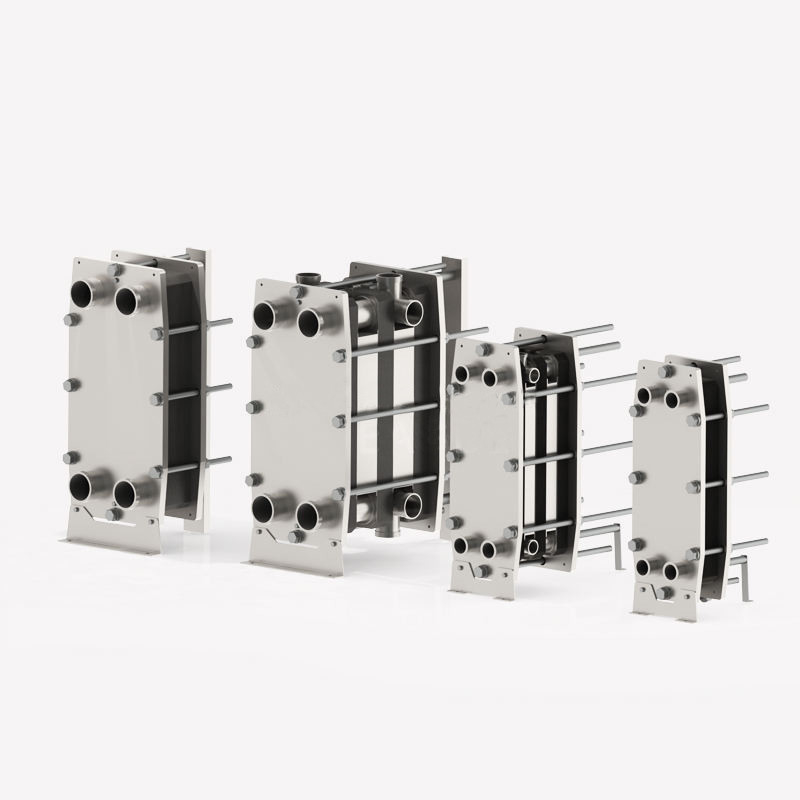

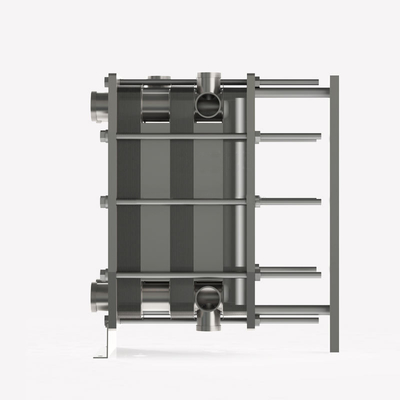

Stainless Steel Industrial Sanitary Liquid Milk Plate Heat Exchanger Pasteurizer Steam Plate Heat Exchanger
Sanitary grade plate heat exchangers are suitable for applications with specific hygiene needs, such as beverages, dairy products and food products, and are the best choice for heat-sensitive media. Sanitary grade plate heat exchangers can be used in multi-stage applications (e.g. for pasteurization) and are easy to disassemble for inspection, cleaning and servicing. Sanitary plate heat exchangers connect plate angles are interchangeable, and heat transfer plates can be easily added or removed, so modifications can be made quickly and easily if the engineering conditions change.
Sanitary grade plate heat exchanger is a heat exchange equipment specially designed for the food industry, and its design and manufacture standards strictly follow food safety and hygiene requirements.
Material safety: The materials of food-grade heat exchangers must meet food safety standards, usually using stainless steel, titanium alloy and other corrosion-resistant, high-temperature and wear-resistant materials to ensure that the equipment will not produce harmful substances to food during use.
Efficient heat exchange: Food grade heat exchanger uses advanced heat exchange technology, has high heat exchange efficiency and good thermal stability, and can meet the various heat exchange needs in the production process of food and beverage.
Easy to clean and disinfect: The design and structure of food-grade heat exchangers should be easy to clean and disinfect, and can meet the cleaning and hygiene requirements to ensure food safety during the production process.
Strong adaptability: food-grade heat exchangers can adapt to a variety of different food production processes and environments, can work under high temperature, low temperature, high pressure, vacuum and other conditions, and has a long service life. It can adjust the channel size and increase or decrease the number of plates according to actual needs to adapt to different flow and pressure requirements.
| Model | BS150 |
| Height, H [mm] | 1815 |
| Width, W [mm] | 610 |
| Vertical port distance, VC [mm] | 1294 |
| Horizontal port distance, HC [mm] | 298 |
| Max. pressure [barg] | 10/16 |
| Gasket | ||
| Material | Applicable Temp | Applicable fluids |
| BNR | -15°C to +135°C | Water, sea water, Mineral oil, salinous water |
| EPDM | -25°C to +180°C | Hot water, Steam, Acid, Alkali |
| F26 | -55°C to +230°C | Acid, Alkali |
| FTP | 0°C to +160°C | High Concentrated acid, Alkali, High temperature oil, Steam |
