Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | Baode |
| Certification: | CE/UL |
| Model Number: | CP series |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 1000~10000 Per Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 14-18 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Product Name: | High Temperature Titanium Fully Welded Compabloc Plate Heat Exchanger For Feed Water Heat Recovery | Applications: | Heat Recovery, Heating And Cooling In Crude Oil Dehydration And Desalination Systems |
|---|---|---|---|
| Refineries: | Various Condensing & Reboiling Duties | Benifits: | High Thermal Efficiency Saves Energy, Boosts Performance And Reduces CO2 Emissions |
The all-welded plate heat exchanger use the corrugated sheet as heat transfer components, This is one high efficiency heat exchanger with the advantage of detachable , quickly installed and easy to clean.

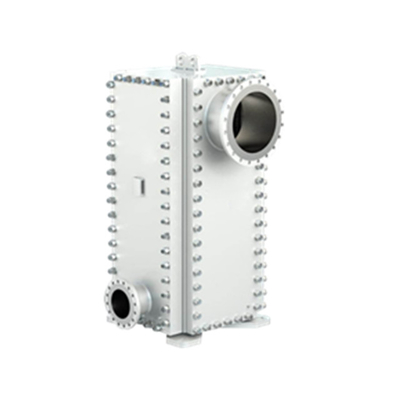

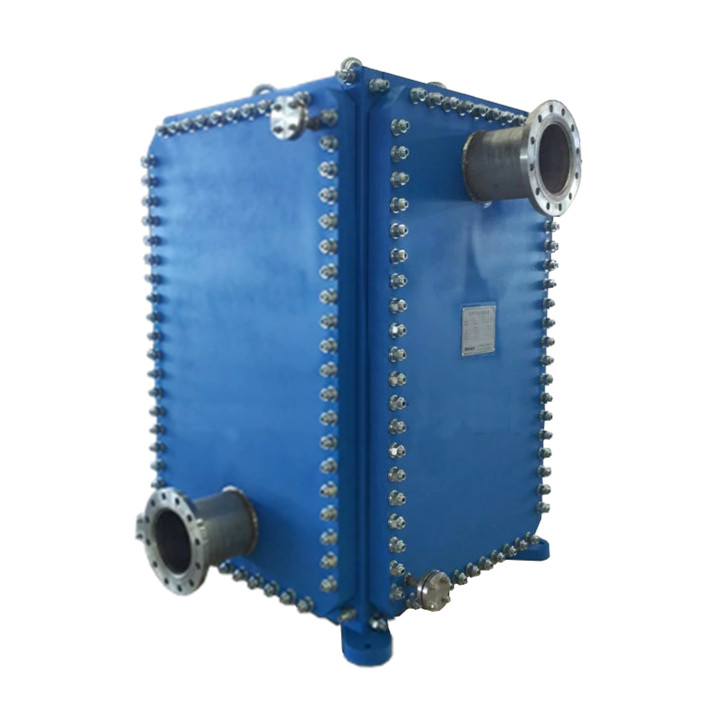

All-Welded Plate Heat Exchanger
Product Introduction
This is one high efficiency heat exchanger with the advantages of detachable and tube and shell heat exchangers.
Main Advantage
1. The heat transfer element of heatexchange core is fully welded plate.and the blind plate is connected withbolts, and the equipment can be quickly installed disassembled and easy to clean.
2. Skew corrugated symmetric channel,turbulent heat transfer efficiency is more higher.
3. The wide and short channel combination, suitable for easy block working conditions.
4. The occupied space is small and can be verticalhorizontal installation.
Applicable Field
1.Design pressure ≤3.2 Mpa
Design temperature ≤350°C
2. Suitable for many corrosive medium
3. Suitable for low pressure drop required for heat transfer working conditions, such as tower head's condensation
Application field
It is suitable for petroleum, chemical industry, electricity , metallury industry, shipbuilding, pharmaceutical and other industries.
Refineries
Various condensing & reboiling duties such as:
Condensation in atmospheric and vacuum distillation
Top condensing on fractionators in FCC, hydrocracking, H2S strippers, etc.
After-sales Service:
1. One-year free warranty and life-long maintenance service
2. Equipment o peration and maintenance vedio guide for the c ustomers
3 . Help to do worker training
4 . On-line support every day
| Model | Standard Pressure (bar) | Standard Temp. Range (°C) | Max.Dimension (mm) A*A*B |
| CP15 | FV-32 | -40 - 300 | 280*280*540 |
| CP20 | FV-32 | -40 - 300 | 430*430*730 |
| CP30 | FV-32 | -40 - 300 | 500*500*1070 |
| CP40 | FV-32 | -40 - 300 | 600*600*1400 |
| CP50 | FV-32 | -40 - 300 | 840*840*2050 |
| CP75 | FV-32 | -40 - 300 | 1240*1240*3600 |
| CP120 | FV-32 | -40 - 300 | 2190*2190*3500 |
