Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | Baode |
| Certification: | CCS/UL/CE |
| Model Number: | Air Cross Series |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 200-500 per Unit |
| Packaging Details: | Plywood Box |
| Delivery Time: | 14-18 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Units per month |
| Product Name: | High Efficiency Air To Air Counterflow Heat Exchanger For Heat Recovery Chiller Plate Heat Exchanger | Main Application: | Compressed Air Cooling |
|---|---|---|---|
| Cover Plate: | Stainless Steel | Plate Material: | Stainless Steel |
| Connections: | Stainless Steel |

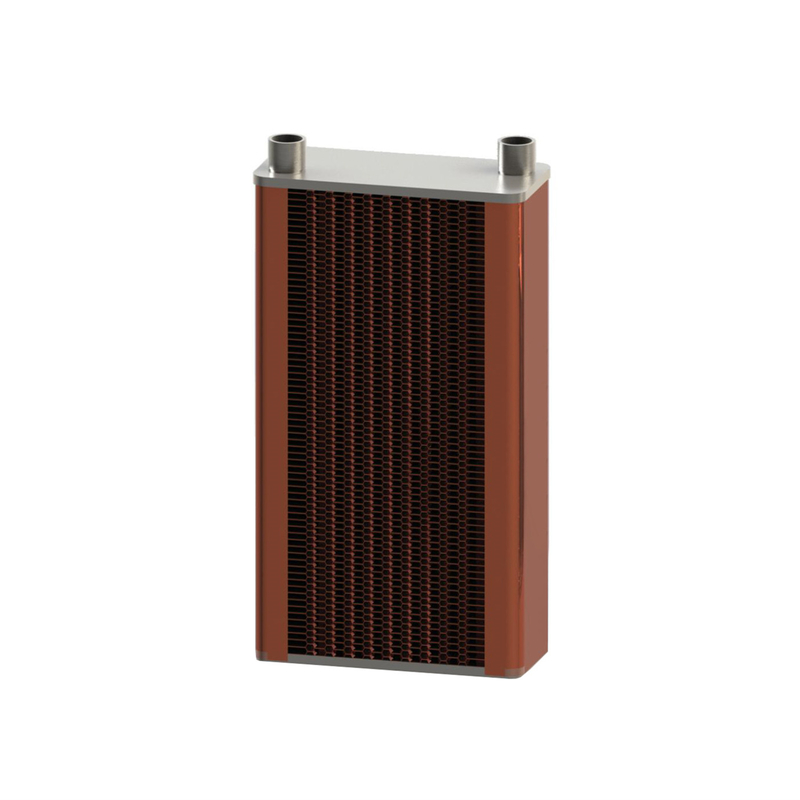

High Efficiency Air to Air Counterflow Heat Exchanger for Heat Recovery Chiller Plate Heat Exchanger
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of pasteurizer heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of pasteurizer heat exchangers for any task.
Our main products are Brazed pasteurizer heat exchanger & Gasket pasteurizer heat exchanger & Air cross pasteurizer heat exchanger (Flat pasteurizer heat exchanger and frame and pasteurizer heat exchanger, welded pasteurizer heat exchanger). Braze pasteurizer heat exchanger include Copper brazed pasteurizer heat exchanger and Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the pasteurizer heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
Introduction
BAODE AIR CROSS gas-to-liquid heat exchangers are a flexible solution that maximize efficiency while minimizing pressure
drop with gas media.
Applications
•Exhaust gas heat recovery
•Compressed air cooling
•Charge air cooling
•Condenser
Benefits
•Compact
•Easy to install
•Low level of service and maintenance required
•All units are pressure and leak tested
Design
The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life.
Asymmetric channels provide optimal efficiency in the most compact design. This results in very low pressure drop on the gas side.
Cross-flow arrangement with open inlets/outlets on the low- pressure side ensures the lowest possible pressure drop when working with gas media.
The Air Cross heat exchanger can be built in modular systems, creating the ability to handle larger gas volume extending the performance efficiency to larger systems.

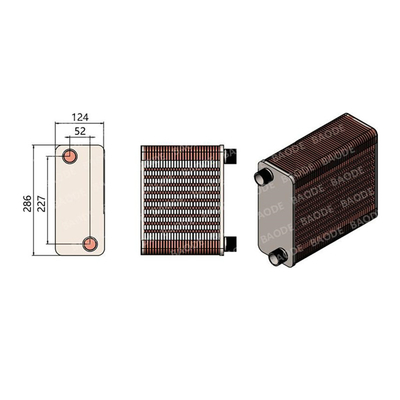

| Dimensions and weight | |
| A measure (mm) | 6 + (3.28 * n) |
| A measure (inches) | 0.24 + (0.13 * n) |
| Weight (kg) | 1.506 + (0.10 * n) |
| Weight (lb) | 3.32 + (0.22 * n) |
1 n = number of plates.
Model
BL1
Standard materials
Cover plates: Stainless steel AISI 316
Connections: Stainless steel AISI 316
Plates: Stainless steel AISI 316
Brazing filler: Copper / Nickle
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
Certified by ISO9001, CE, UL, WRAS, RoHS, CCS etc.
| Standard data | |
| Volume per channel, litres (gal) | (D2–D4): 0.117 (0.0309) |
| Max. particle size, mm (inch) | 1 (0.039) |
| Flow direction | Parallel |
| Min. number of plates | 20 |
| Max. number of plates | 140 |
