Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | BAODE |
| Certification: | CE UL |
| Model Number: | PVX-95 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 100~1500 Per Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 14-18 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Units per Month |
| Product Name: | Swimming Pool Heat Pump Freon PVC Shell And Tube Refrigerant To Water Heat Exchanger | Material: | Titanium |
|---|---|---|---|
| Outer Shell: | PVC Plastic | Key Selling Points: | Corrosion Resistant |
| Warranty: | 1 Year |

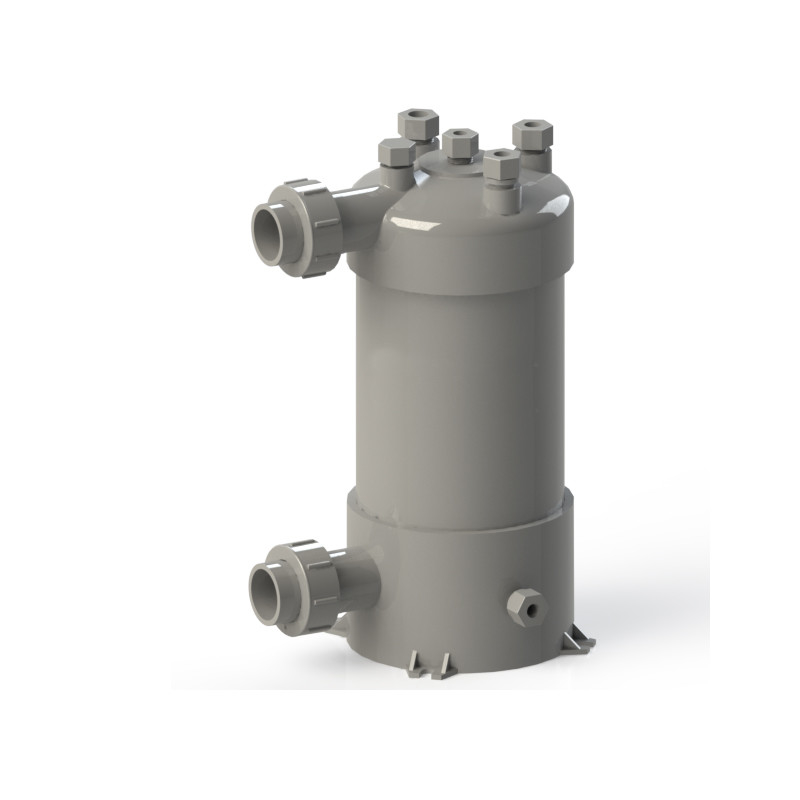

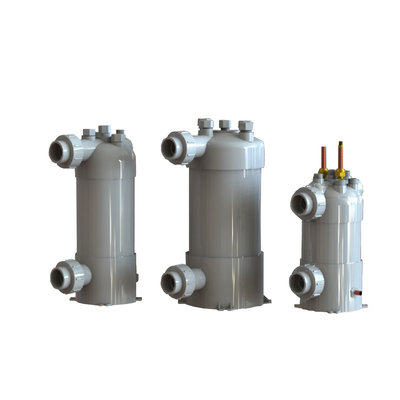

Swimming Pool Heat Pump Freon PVC Shell and Tube Refrigerant to Water Heat Exchanger
Titanium heat exchanger is a new type of heat exchanger composed of a series of corrugated metal plates. A thin rectangular channel is formed between the different sheets of the heat exchanger, and heat is exchanged through half a sheet of paper. Compared with traditional shell-and-tube heat exchangers, its heat transfer coefficient is much higher under the same flow resistance and pump power consumption, and there is a trend to replace shell-and-tube heat exchangers in the applicable scale. Titanium industrial plate commonly used materials are austenitic stainless steel, titanium and titanium alloy, nickel and nickel alloy cold rolled plate. Compared with the titanium heat exchanger has many advantages, has a strong competitiveness in the market, mainly used in chemical, petroleum, ships, sea water and other heat exchange systems.
Advantages:
1. Titanium tube heat exchanger is made of industrial titanium precision, titanium purity of 99.7%, strong corrosion resistance, high electrical conductivity, good heat resistance, suitable for processing and cooling of low concentration, acidic liquid; The surface is not easy to produce oxidation layer, no pollution medium, no scaling is not easy to plug, protect the environment.
2. The titanium heat exchanger is specially welded, and the welding interface is tight and stable, and it is not easy to leak.
3. Titanium tube heat exchanger has simple structure, high pressure resistance, immersion structure, installed in the container to be heat exchange, can be made into single or multiple layers according to the container.
Scope of application:
Titanium heat exchanger has a variety of excellent pure titanium properties, mostly used in a variety of seafood aquaculture, seawater heat exchange, brine heat exchange, chemical industry, food, metallurgy, refrigeration, light industry, electroplating, aluminum oxidation T and other fields. Crude, salt, paper, electronic communication, central heating and other industries and fields.
|
Water side temp. range |
32 - 113F |
| Water side max. pressure | 72 PSI |
| Refrigerant side temp. range | -58 - 248F |
| Refrigerant side max pressure | 740 PSI |
| Model | Capcity (KW) | Water Flow Rate (m³/h) | A (mm) | B (mm) | C (mm) | PVC Shell (mm) | Tube Size (mm) | Tube Length (m) |
Gas Connection (mm) | Water Connection |
| PVX-38 | 3.8 | 1.8 | 70 | 170 | 380 | φ110*330 | 12.7 | 3 | φ12.7/φ12.7 | ϕ50 PVC thread |
| PVX-45 | 5 | 2 | 70 | 235 | 445 | φ110*405 | 12.7 | 4.9 | φ12.7/φ12.7 | |
| PVX-95 | 9.5 | 4.2 | 70 | 285 | 495 | φ110*495 | 12.7 | 6.5 | φ12.7/φ12.7 | |
| PVX-120 | 12 | 5.5 | 70 | 350 | 560 | φ160*470 | 12.7 | 8.4 | φ12.7/φ12.7 | |
| PVX-140 | 14 |
6.2 |
80 | 375 | 595 | φ160*510 | 12.7 | 10.5 | φ12.7/φ12.7 | |
| PVX-170 | 17 | 7.5 | 80 | 360 | 585 | φ200*520 | 16 | 9.8 | φ12.7/φ12.7 | |
| PVX-210 | 21 | 9.2 | 80 | 370 | 595 | φ200*530 | 19 | 10 | φ12.7/φ19 | |
| PVX-250 | 25 | 12 | 80 | 400 | 625 | φ200*560 | 19 | 12.5 | φ12.7/φ19 | |
| PVX-300 | 30 | 14 | 80 | 430 | 650 | φ200*590 | 19 | 15 | φ12.7/φ19 | |
| PVX-360 | 36 | 15 | 80 | 450 | 660 | φ200*610 | 19 | 17 | φ12.7/φ19 |
