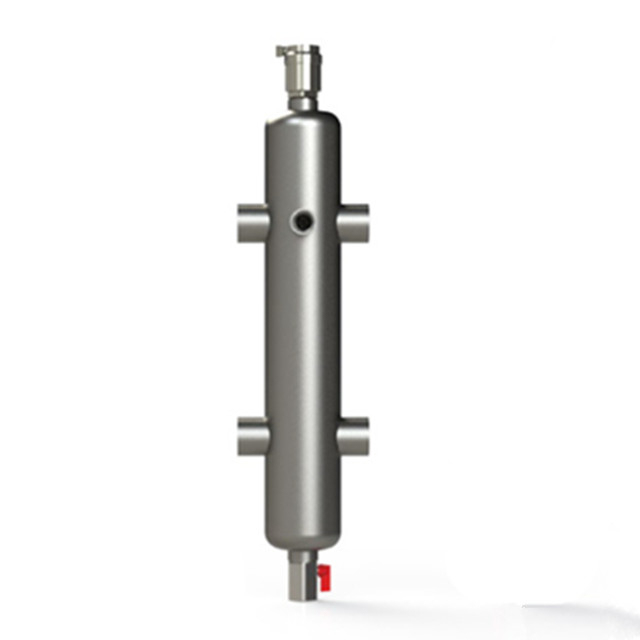

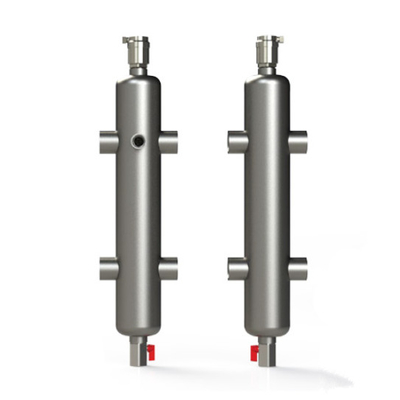

CB100 Stainless Steel Hydraulic Water Pressure Separator For Floor Heating

CB100 Stainless Steel Hydraulic Water Pressure Separator For Floor Heating

BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of pasteurizer heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of pasteurizer heat exchangers for any task
Our main products are Brazed pasteurizer heat exchanger & Gasket pasteurizer heat exchanger & Air cross pasteurizer heat exchanger (Flat pasteurizer heat exchanger and frame and pasteurizer heat exchanger, welded pasteurizer heat exchanger). Braze pasteurizer heat exchanger include Copper brazed pasteurizer heat exchanger and Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the pasteurizer heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.

FUNCTIONNING

Hydraulic separators are devices used to separate and isolate different fluid streams, usually hot water & cold water, They are designed improve system efficiency and reduce maintenance by preventing the mixing of fluids of different temperatures or compositions, which can cause a variety of problems, including uneven heating or cooling, corrosion, and sediment buildup.
It creates a barrier between two fluid streams so that they can flow independently without affecting each other's properties, The device consists of a rectangular vessel with a baffle inside that creates a buffer zone between the two streams. The buffer zone allows the fluids to mix and equilibrate their temperatures without creating turbulence or disturbance in the main streams.

TECHNICAL SPECIFICATIONS

Separate air and dirt

Offered with drain valve

Stainless steel housing

Provided with wall bracket

Maximum operating pressure 150 psi

Maximum operating temperature 132°C (270°F)

Equipped with automatic air vent
