Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger

Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger

Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger
Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger
Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger
Product Details:
Place of Origin: China
Brand Name: Baode
Certification: CE/UL
Model Number: BPS128
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 10000-25000 per Unit
Packaging Details: Plywood case
Delivery Time: 14-18 work days
Payment Terms: T/T
Supply Ability: 500 Unit/Units per Month
Contact Now
Detailed Product Description
Product Name: Quality Industrial Cooler Radiator Chiller Evaporator Plate And Shell Heat Exchanger Applications: Steam Condensers And Generators
Benefits: High Integrity / Total Containment

Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger

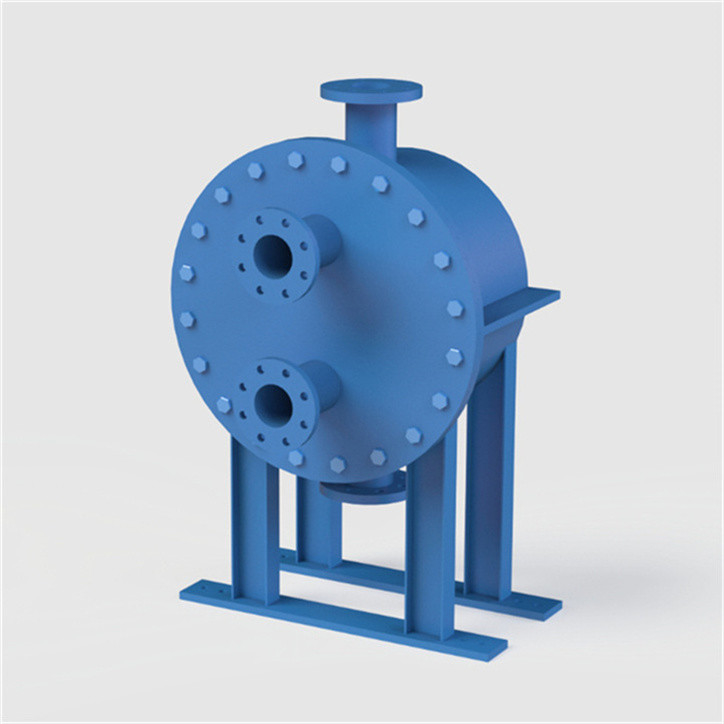

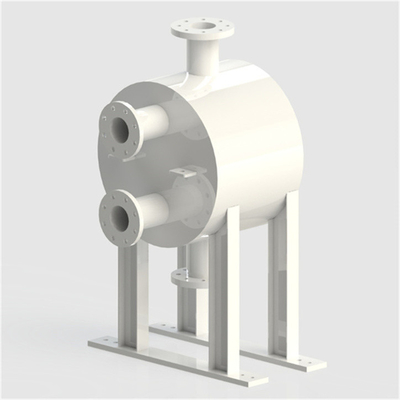

Plate & Shell Heat Exchanger (PSHE)

The PSHE range of heat exchangers are new generation heat exchangers, combining the best properties of the Plate & Frame and Shell & Tube heat exchangers. The PSHE provides high heat transfer rates with a high pressure and temperature operating range. They have no gaskets, are compact, low fouling and can operate at close approach temperatures.
At the heart of the PSHE is a fully welded pack of circular plates without gaskets. This plate pack is housed within a tubular shell to provide a strong compact construction. The PSHE series have a very wide operating range with capacities of up to 100 MW / units, and can operate at pressures up to 100 bar and temperatures up to 400°C. They have a low maintenance design that provides flexibility to select different material and nozzle combinations



Applications:

  • Steam condensers and generators
  • Condensate heaters and coolers
  • Exhaust gas recovery
  • LNG applications
  • Crude oil heaters and coolers
  • Gas heaters and coolers
  • Hydrocarbon condensers and evaporators
  • Product heaters and coolers
  • Gas heaters and coolers
  • Heat-recovery exchangers like feed/effluent exchangers
  • Overhead condensers and gas liquefiers
  • Thermosyphon and kettle reboilers
  • Reactor temperature-control heat exchangers
  • Cryogenic applications
  • Evaporators
  • Droplet separators
  • Evaporators/droplet separators (Combined)
  • Cascades
  • Desuperheaters
  • Oil coolers
  • Subcoolers
  • Condenser

Benefits:

  • No Gaskets or Brazing
  • High Integrity / Total Containment
  • Strong and Safe Construction
  • Protection and Resistance to Thermal and Pressure Cycling
  • Thermally Efficient
  • Compact and Low Weight
  • Flexible Construction
  • Proven, Reliable Technology
  • Low Fouling
  • Minimal Maintenance Requirement
  • Close Approach Temperatures

Technical Specification

Maximum Heat Transfer Area

  • • 2 000 m²/exchanger Mechanical Design
  • • Full vacuum to 70 bar possible
  • • -164 to +500°C



Model A B C D E F G
BPS16 240 98 250 168 2.4*N+2 DN15 DN15-DN80
BPS22 448 135 310 219 2.4*N+3 DN20 DN20-DN100
BPS46 469 174 368 269 2.4*N+4 DN40 DN25-DN200
BPS72 565 277 460 355 2.4*N+4 DN50 DN25-DN300
BPS128 600 298 694 464 2.8*N+6 DN80 DN25-DN350
BPS179 963 338 725 559 2.8*N+6 DN100 DN25-DN400
BPS647 1520 650 1250 1016 2.8*N+6 DN150 DN25-DN700
BPS1200 1828 900 1548 1372 3.2*N+6 DN300 DN25-DN1000
BPS1600 2048 1000 1838 1562 3.2*N+8 DN350 DN25-DN1200



Material
Shell Plate
Carbon steel AISI304
AISI 304 AISI 316L
AISI 904L AISI 904L
AISI 904L 254 SMO
254 SMO TI
TI Nickle
Hastelloy Hastelloy 254
Others Others



Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger 0Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger 1Quality Industrial Cooler Radiator Chiller Evaporator Plate and Shell Heat Exchanger 2
