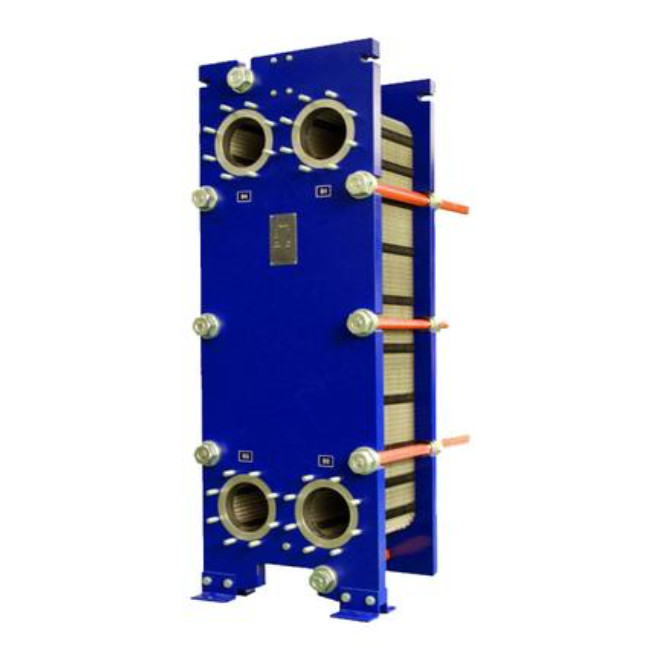

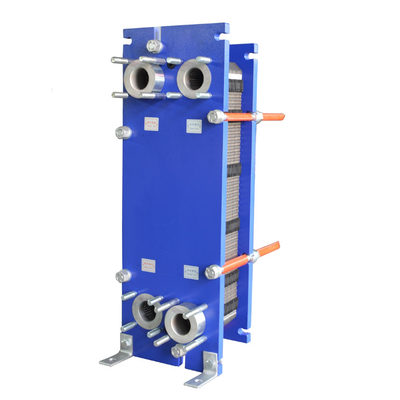

BH100 High Pressure Gasket SS316L Petrochemical Steam Plate Heat Exchanger Condenser

BH100 High Pressure Gasket SS316L Petrochemical Steam Plate Heat Exchanger Condenser


A gasket plate heat exchanger, also known as a plate heat exchanger, is an efficient and compact heat exchange device. It consists of a series of parallel plates that are held together by a clamping device to form a closed heat exchange channel. Its working principle is mainly reflected in its unique plate design and heat transfer process.

The core of a plate heat exchanger is its plate, which is usually made of a material that is resistant to corrosion and has good heat transfer performance, such as stainless steel or titanium alloy. Each plate is designed with a flow channel so that the fluid forms a thin laminar flow as it passes through, which enhances the heat transfer effect. When two fluids of different temperatures flow through these plates, heat is transferred from the higher temperature fluid to the lower temperature fluid, achieving heat exchange.

The design of the plate heat exchanger makes the two fluids completely isolated, preventing the mixing between different fluids and ensuring the reliability of the process. At the same time, due to its compact structure and efficient heat transfer performance, plate heat exchangers have been widely used in many fields, such as heating, refrigeration, industrial waste heat recovery and so on.

In actual operation, the advantages of the gasket plate heat exchanger are also very obvious. Because the plates can be easily disassembled and cleaned, the maintenance of the equipment is simple and fast. At the same time, due to its efficient heat transfer performance and low resistance loss, the energy efficiency is greatly improved and the operating cost is reduced.

(Measurment in mm, N means the number of the plates)


The gasket plate heat exchanger, with its unique design and efficient performance, has been widely used in various industrial and civil fields. It is highly efficient, compact, lightweight and easy to maintain, making it a leader in modern heat transfer technology.

The biggest feature of the gasket plate heat exchanger is its high efficiency. Due to its unique plate design, the hot and cold fluids flow in a very small flow channel, which greatly improves the heat transfer efficiency. At the same time, due to the turbulent state of the fluid, the heat transfer process is more efficient.
