Stainless Steel Standard Heat Exchanger NBR Gasket Plate Heat Exchanger

Gasket Plate Heat Exchanger Stainless steel AISI316 Plates NBR Gasket for Food Industry

(Measurment in mm, N means the number of the plates)


Standard design

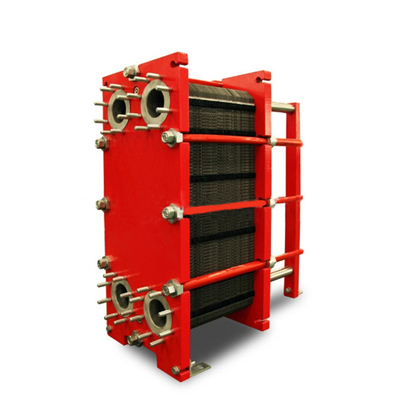

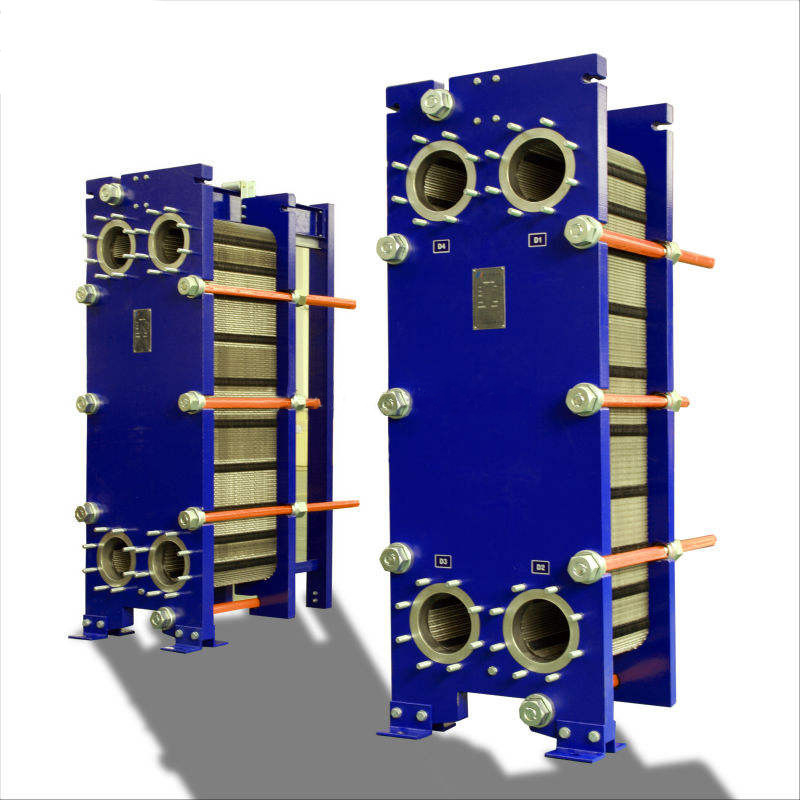

The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids
between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the interpolate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program.
The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.

Typical capacities
Liquid flow rate
Up to 16 kg/s (250 gpm), depending on media, permitted
Pressure drop and temperature program.
Water heating by steam
300 to 800 kW

Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.

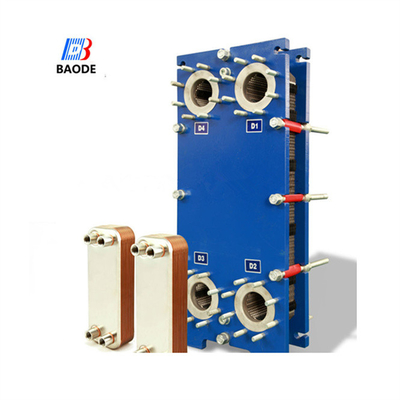

Advantages of the Baode Gasket Plate Heat Exchanger
*Less splace & more efficient
Baode Gasket plate heat exchanger is compact size! With the compact designs they just need 22–50% less space in the system than a comparable shell-and-tube heat exchanger. so they require up to 75% less cooling media, you just need a smaller pumps that will consume less energy.


*Six times more efficient than shell & tube heat exchanger.
Compare with Shell-tube-heat exchanger, Baode gasket plate heat exchanger / Frame and plate heat exchanger offers up to six times greater heat transfer efficiency. The special corrugate plate pattern creates a high level of turbulence which, in combination with the low liquid volume and high heat transfer values. This make easy to control the heating or cooling effcient.


*Easy maintenance
When cleaning is needed, gasket plate heat exchanger can easily be opened, giving access to the plate surfaces, use pressure water or certain liquid to clean.
