| Product Name: | BL190 Series Stainless Steel Plates Copper Brazed Plate Heat Exchanger Marine Engine Oil Cooler | Main Application: | Car Engine Oil Cooler/hydraulic Heat Exchanger |
|---|---|---|---|
| Brazing Material: | Copper | Oil Cooler Type: | Copper Brazed Plate Heat Exchanger |

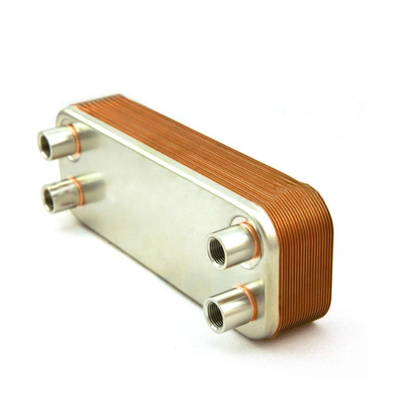

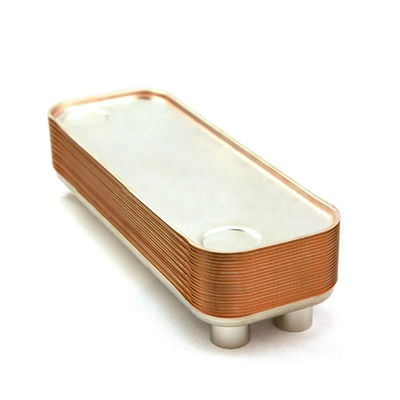

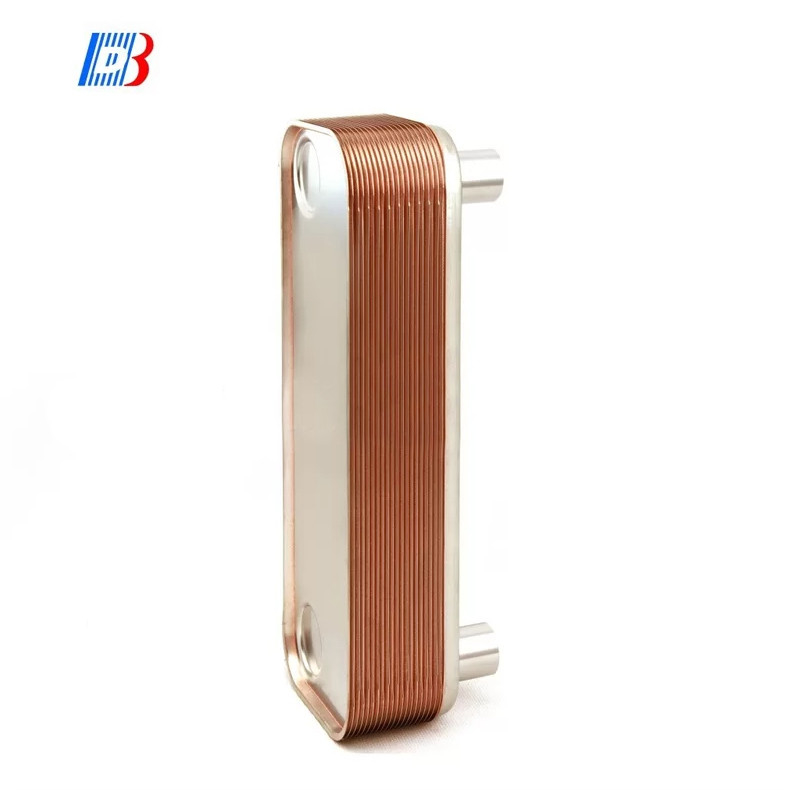

BL190 Series Stainless Steel Plates Copper Brazed Plate Heat Exchanger Marine Engine Oil Cooler
Description
Heat exchangers are used to exchange heat between two fluids. Plate heat exchangers are high performance
components and provide a high level of efficiency combined with compact dimensions and low weight. Their
efficiency reduces the amount of cooling water required for heat transfer which results in low operating costs.
Features
Plates and connections are manufactured from stainless steel to AISI 316, vacuum brazed with cooper. The
special moulding of the plates produces the turbulent flow necessary for effective heat transfer and provides
the plate heat exchanger with a high level of mechanical strength.
Operating Details
Medium
Water glycol
HFC operating fluids
Water
Oil
Contamination
The quantity of particles in suspension should be less than 10 mg/l, particle size <0.6mm
Thread like particles cause a rapid rise in pressure drops.
Temperature range
10C to 225C (freezing point and boiling point must be taken into consideration)
Pressure
Max 45 bar up to 225C, testing pressure 60 bar.
Corrosion
The following limits refer to a PH value of 7
Free chlorine. CL2<0.5ppm
Chloride ions CL
<700 ppm at 20C
<200 ppm at 50C
Other Limitations
PH7-10
SULPHATE so4 2-<100 ppm
[HCO3]/[SO4 2-]>1
Ammonia, NH3< 10 ppm
Free co< 10 ppm
The following ions are not corrosive under normal conditions:
Phosphate, nitrate, nitrite, iron, manganese, sodium and potassium
Hydraulic oil cooling, Electricity and cogeneration applications, marine oil cooling, turbine engine oil cooler, automotive,
construction, railways, steel industry
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
| Model | BL26 |
| Width, A [mm] | 111 |
| Height, B [mm] | 310 |
| Length, E [mm] | 10+2.36n |
| Horizontal port distance, C [mm] | 50 |
| Vertical port distance, D [mm] | 250 |
| Max pressure [Mpa] | 3 |
| Max flowrate [M3/h] | 8.1 |
| Weight [kg] | 1.3+0.12n |
Model
BL1
| Model | BL14 | BL20 | BL26 | BL26C | BL50 | BL95 |
| Width, A [mm] | 78 | 76 | 111 | 124 | 111 | 191 |
| Height, B [mm] | 206 | 310 | 310 | 304 | 525 | 616 |
| Length, E [mm] | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance, C [mm] | 42 | 42 | 50 | 70 | 50 | 92 |
| Vertical port distance, D [mm] | 172 | 282 | 250 | 250 | 466 | 519 |
| Max pressure [Mpa] | 3 | 3 | 3 | 3/4.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 3.6 | 3.6 | 8.1 | 8.1 | 12.7 | 39 |
| Weight [kg] | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 | BL1400 | BL100 * | BL200 * |
| Width, A [mm] | 246 | 307 | 321 | 429 | 248 | 322 |
| Height, B [mm] | 528 | 696 | 738 | 1398 | 495 | 739 |
| Length, E [mm] | 13+2.36n | 13+2.75n | 13+2.7n | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontal port distance, C [mm] | 174 | 179 | 188 | 220 | 157 | 205.2 |
| Vertical port distance, D [mm] | 456 | 567 | 603 | 1190 | 405 | 631 |
| Max pressure [Mpa] | 3 | 3 | 2.1 | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 42 | 100 | 100 | 300 | 42 | 100 |
| Weight [kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
