Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | Baode |
| Certification: | CE/UL |
| Model Number: | SH60 Series |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | USD 300-1000 per Unit |
| Packaging Details: | Plywood case |
| Delivery Time: | 14-18 work days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Product Name: | SH60 Series Gasket Plate Heat Exhcanger 10/16 Bar 20kg/s For HVAC Steam Heating | Application: | Steam Heating |
|---|---|---|---|
| Frame Material: | Carbon Steel | Plate Material: | AISI 316L/304/ NI/TI |
| Gasket: | NBR/EPDM/VITON | Heat Exchanger Type: | Frame And Plate Type |

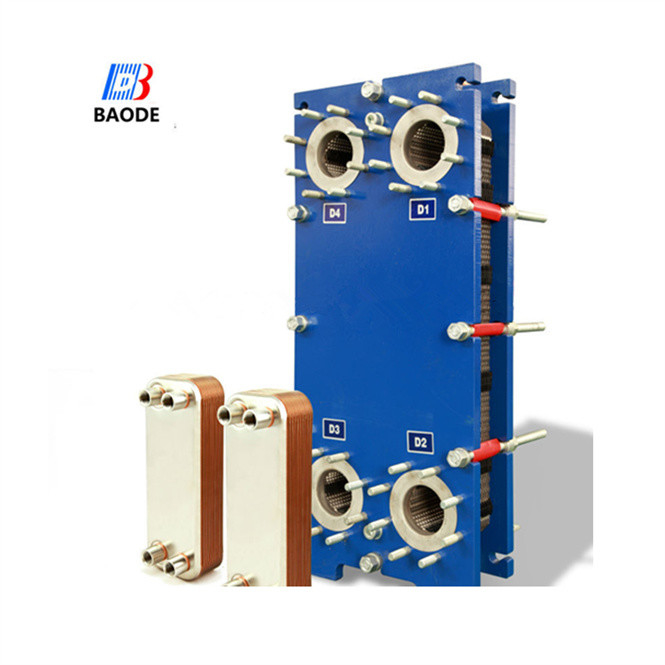

SH60 series gasket plate heat exhcanger 10/16 bar 20kg/s for HVAC steam heating
| Model | SH60 | |
| Cross Reference | TS6M | |
| Height, H [mm] | 704 | 704 |
| Width, W [mm] | 400 | 410 |
| Min standard length, L [mm] | 530 | 540 |
| Max standard length, L [mm] | 1430 | 1440 |
| Vertical port distance, VC [mm] | 380 | 380 |
| Horizontal port distance, HC [mm] | 203 | 203 |
| Max temperature [°C] | 180 | 180 |
| Max pressure [barg] | 16 | 20.6 |
| Flange size | DN65/2'' | DN65/2'' |
| Max. flow rate [kg/s] | 20 | |
(Measurment in mm, N means the number of the plates)
| Material of Plate | Suited Liquid Kinds | ||
| Stainless Steel (AISI304.316 Etc) | Pure Water, Normal Water, Oil for eating, Mineral Oil | ||
| Ti, Ti-pd | Sea Water, Saline Water, Mineral Water | ||
| 20Cr, 18Ni, 6Mo (254SMO) | Dilute Sulphuric Acid, Organic Water Solution | ||
| Ni | High-temp and concentration caustic soda | ||
| Hastelloy (C276, D205, B2G) | Concentration Sulphuric Acid, Hydrochloric acid, Phosphoric acid | ||
| Material of Gasket | Operating Temperature ° C | Suited Liquid Kinds | |
| NBR | -15~+135° C | Water, Sea Water, Mineral Oil, Salinous Water | |
| EPDM | -25~+180° C | Hot Water, Steam, Acid, Alkali | |
| F26 | -55~+230° C | Acid, Alkali | |
| TPF | -0~+160° C | High Concentrated Acid, Alkali, High temperature Oil, Steam | |

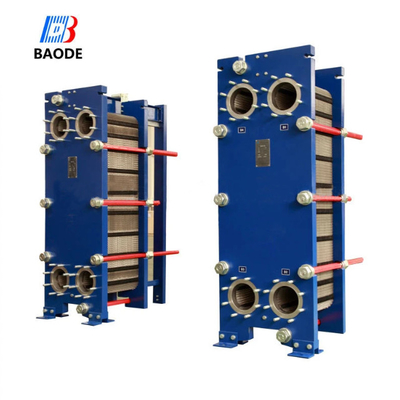

Baode frame and plate heat exchanger is No,1 China brand in plate heat exchanger industry. The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media fl ow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is reated for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
