Brazed Plate Air Dryer Heat Exchanger Low Energy Consumption

Brazed Plate Heat Exchanger Low Energy Consumption Air Dryer for Refrigeration


BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of pasteurizer heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of pasteurizer heat exchangers for any task.
Our main products are Brazed pasteurizer heat exchanger & Gasket pasteurizer heat exchanger & Air cross pasteurizer heat exchanger (Flat pasteurizer heat exchanger and frame and pasteurizer heat exchanger, welded pasteurizer heat exchanger). Braze pasteurizer heat exchanger include Copper brazed pasteurizer heat exchanger and Nickel brazed pasteurizer heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the pasteurizer heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.

How it works

Refrigerated air dryers separate humidity from compressed air by cooling the air in an evaporator. This cooling effect comes from the evaporation of the refrigerant. As the air cools, it looses its ability to hold moisture. The condensate is then collected and removed in a separator.
A heat recovery air to air heat exchanger that reheats the air to ambient temperature is in the Airdryer for optimal efficiency.
This humid air then moves into a separator and then dry air is preheated in the heat recovery side. The total air side pressure drop is typically 20-30 kPa (3-4 psi)

Introduction

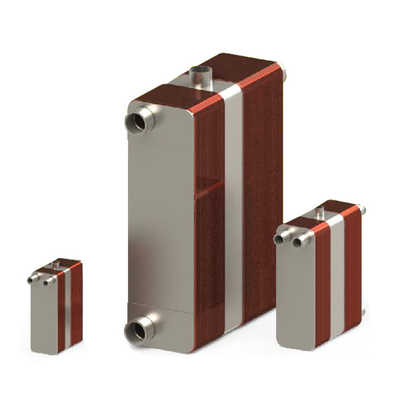

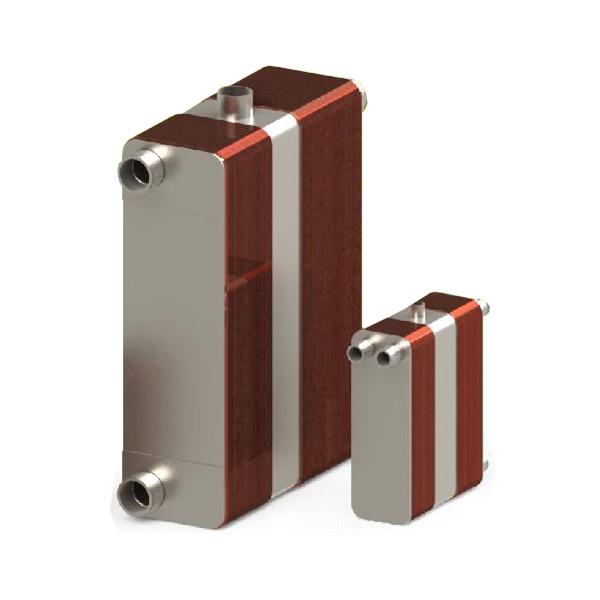

AL series Air dryer are brazed plate heat exchangers designed for separation of humidity in compressed air.


Applications

Compressed air drying

Benefits

•Compact
•Easy to install
•Self-cleaning
•Low level of service &maintenance is required
•All units are pressure and leak tested
•Gasket free

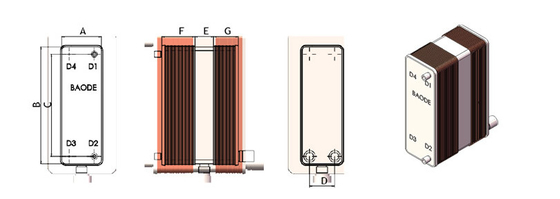

ModelBL1
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support

Certified by ISO9001, CE, UL, WRAS, RoHS, CCS etc.
