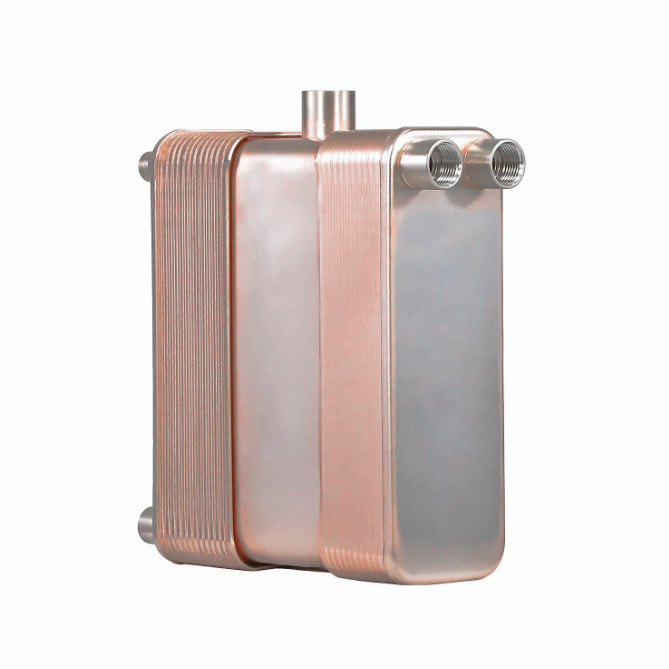

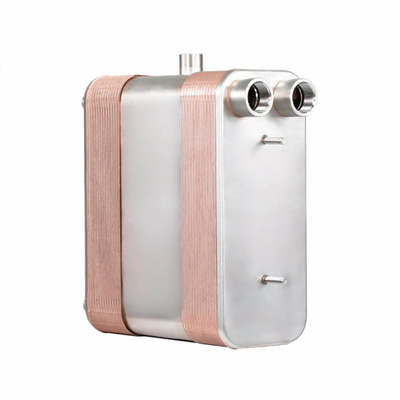

Custom High Pressure Refrigerant Copper Evaporator Blower Air Dryer Filter Steam Heat Exchanger

Custom High Pressure Refrigerant Copper Evaporator Blower Air Dryer Filter Steam Heat Exchanger

Product description

Plate heat exchangers have been widely used in many industries, and are now widely used in many industries such as power engineering, shipping, metallurgy, petroleum, chemical industry, food and light industry. So what are the requirements for temperature and pressure of plate heat exchangers?

Plate heat exchanger surface compact structure, small gap, so the heat transfer area per unit volume increases, its installation area is about 1/2 to 1/3 of the shell type, generally can save the floor area and construction costs, each shell volume is 1m3, the heat transfer area is about 80m2, in addition, plate heat exchanger easy to increase or decrease the heat exchange area, For shell and tube heat exchangers, when the liquid processing capacity needs to be increased, the heat transfer area of the original heat exchanger is almost impossible to increase, but the heat transfer area of the plate heat exchanger is easy to increase, thereby increasing the processing capacity.

Plate heat exchangers only the shell plate of the heat transfer plate is exposed to the atmosphere, so the heat loss is negligible and no insulation measures are required. One of its features in operation and maintenance is that it is more convenient to install and disassemble, and even need not be completely disassembled, and only the compression bolt can be loosened to remove the plate for cleaning, replacing the washer, and even replacing the plate. This is particularly important for materials where the heat transfer medium is prone to deposition. Allowable temperature and pressure: It relies on the gasket between each two plates to prevent material leakage, so the total length of its sealing perimeter is long, to prevent gasket leakage is an important link.

The temperature, pressure and chemical stability that the washer can withstand are also often the temperature and pressure of its use and the range of materials allowed. In addition, because the gap between the heat transfer surface is small, the heat transfer surface has a convex, so the pressure loss is larger than the traditional smooth, in addition, the plate heat exchanger is under lower working pressure.

Compared with traditional heat exchange equipment, plate heat exchangers not only have advantages in appearance, but also have great advantages in functional use: that is, the heat can be used twice, the resources can be fully utilized, and the role of energy saving can be achieved. The previous tubular plate intersection principle is the same, but the heat exchange effect is definitely not as good as the plate heat exchanger effect.

ModelBL1
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support

Certified by ISO9001, CE, UL, WRAS, RoHS, CCS etc.
