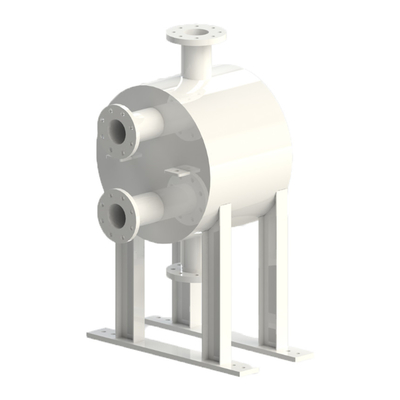

Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery

Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery

Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery
Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery
Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery
Product Details:
Place of Origin: China
Brand Name: Baode
Certification: CE/UL
Model Number: BPS16
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD 500-1000 per Unit
Packaging Details: Plywood case
Delivery Time: 14-18 work days
Payment Terms: T/T
Supply Ability: 500 Unit/Units per Month
Contact Now
Detailed Product Description
Product Name: Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery Applications: Steam Condensers And Generators
Benefits: High Integrity / Total Containment

Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery



Plate & Shell Heat Exchanger (PSHE)

The PSHE range of heat exchangers are new generation heat exchangers, combining the best properties of the Plate & Frame and Shell & Tube heat exchangers. The PSHE provides high heat transfer rates with a high pressure and temperature operating range. They have no gaskets, are compact, low fouling and can operate at close approach temperatures.
At the heart of the PSHE is a fully welded pack of circular plates without gaskets. This plate pack is housed within a tubular shell to provide a strong compact construction. The PSHE series have a very wide operating range with capacities of up to 100 MW / units, and can operate at pressures up to 100 bar and temperatures up to 400°C. They have a low maintenance design that provides flexibility to select different material and nozzle combinations



Applications:

  • Steam condensers and generators
  • Condensate heaters and coolers
  • Exhaust gas recovery
  • LNG applications
  • Crude oil heaters and coolers
  • Gas heaters and coolers
  • Hydrocarbon condensers and evaporators
  • Product heaters and coolers
  • Gas heaters and coolers
  • Heat-recovery exchangers like feed/effluent exchangers
  • Overhead condensers and gas liquefiers
  • Thermosyphon and kettle reboilers
  • Reactor temperature-control heat exchangers
  • Cryogenic applications
  • Evaporators
  • Droplet separators
  • Evaporators/droplet separators (Combined)
  • Cascades
  • Desuperheaters
  • Oil coolers
  • Subcoolers
  • Condenser

Benefits:

  • No Gaskets or Brazing
  • High Integrity / Total Containment
  • Strong and Safe Construction
  • Protection and Resistance to Thermal and Pressure Cycling
  • Thermally Efficient
  • Compact and Low Weight
  • Flexible Construction
  • Proven, Reliable Technology
  • Low Fouling
  • Minimal Maintenance Requirement
  • Close Approach Temperatures

Technical Specification

Maximum Heat Transfer Area

  • 2 000 m²/exchanger Mechanical Design
  • Full vacuum to 70 bar possible
  • -164 to +500°C



Model A B C D E F G
BPS16 240 98 250 168 2.4*N+2 DN15 DN15-DN80
BPS22 448 135 310 219 2.4*N+3 DN20 DN20-DN100
BPS46 469 174 368 269 2.4*N+4 DN40 DN25-DN200
BPS72 565 277 460 355 2.4*N+4 DN50 DN25-DN300
BPS128 600 298 694 464 2.8*N+6 DN80 DN25-DN350
BPS179 963 338 725 559 2.8*N+6 DN100 DN25-DN400
BPS647 1520 650 1250 1016 2.8*N+6 DN150 DN25-DN700
BPS1200 1828 900 1548 1372 3.2*N+6 DN300 DN25-DN1000
BPS1600 2048 1000 1838 1562 3.2*N+8 DN350 DN25-DN1200



Material
Shell Plate
Carbon steel AISI304
AISI 304 AISI 316L
AISI 904L AISI 904L
AISI 904L 254 SMO
254 SMO TI
TI Nickle
Hastelloy Hastelloy 254
Others Others



Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery 0Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery 1Full-Welded Plate And Shell Heat Exchanger For Exhaust Gas Recovery 2
