| Product Name: | Brazed Plate Heat Exchanger Industrial Condenser Evaporator Cooler HVAC Chiller Boiler Heat Pump | Main Application: | Car Engine Oil Cooler/hydraulic Heat Exchanger |
|---|---|---|---|
| Brazing Material: | Copper | Oil Cooler Type: | Copper Brazed Plate Heat Exchanger |

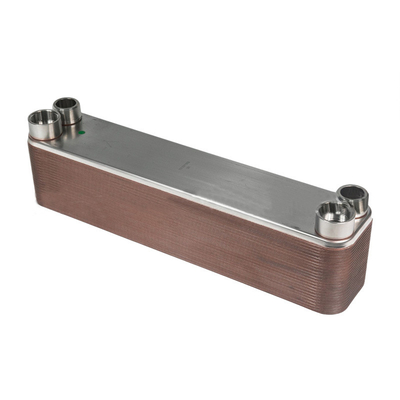

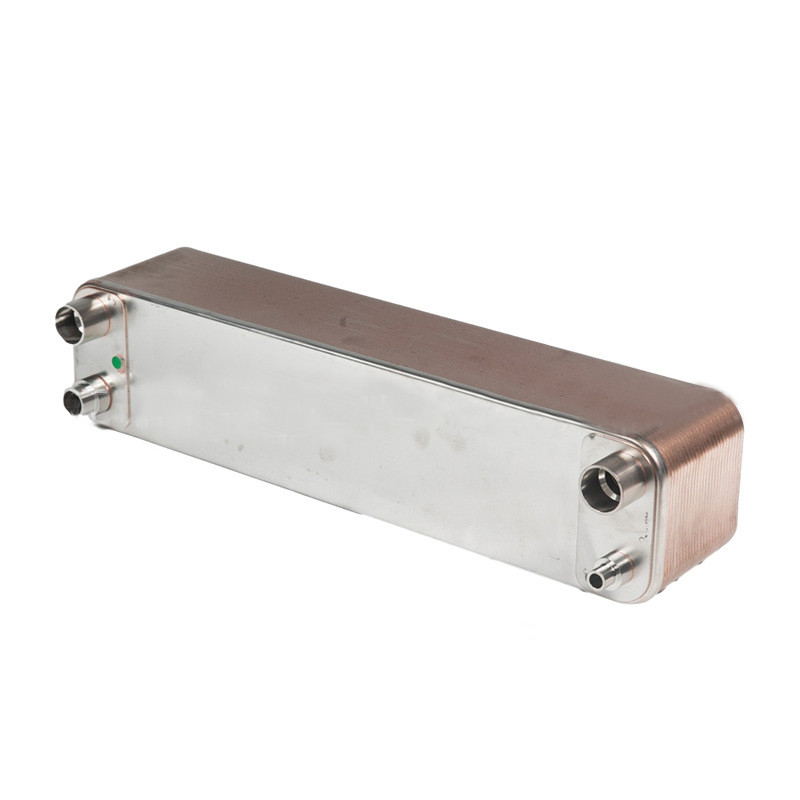

Brazed Plate Heat Exchanger Industrial Condenser Evaporator Cooler HVAC Chiller Boiler Heat Pump
Product Description
Brazing plate heat exchanger overview:Brazed plate heat exchanger is a new type of high efficiency heat exchanger which is composed of a series of metal sheets with a certain corrugated shape.
A thin rectangular channel is formed between the various plates, and heat is exchanged through the half plates. Compared with conventional shell-and-tube heat exchangers, its heat transfer coefficient is much higher under the same flow resistance and pump power consumption, and there is a trend to replace shell-and-tube heat exchangers in the applicable range.
Brazed plate heat exchanger application range:
This type of brazed plate heat exchanger is mainly used for refrigeration, evaporator, condenser, oil cooling, steam heating and so on.
Heat transfer characteristics of brazed plate heat exchanger:
Brazed plate heat exchanger can be used for heating, industrial cooling, oil press and compressor oil cooling, air conditioning, frozen food, chemical refrigeration, water cooling, drinking water treatment, waste water treatment, heat recovery and other aspects.
| Model | BL26 |
| Width, A [mm] | 111 |
| Height, B [mm] | 310 |
| Length, E [mm] | 10+2.36n |
| Horizontal port distance, C [mm] | 50 |
| Vertical port distance, D [mm] | 250 |
| Max pressure [Mpa] | 3 |
| Max flowrate [M3/h] | 8.1 |
| Weight [kg] | 1.3+0.12n |
Model
BL1
Application
Swimming pool water heating. Simple, strong, compact and
highly reliable, Baode Brazed Plate heat exchangers are designed to efficiently reheat
and maintain temperature of water in swimming pools of all
dimensions and capacities from primary heat source such as
boiler, solar installation, heat pump etc.
Standard design
Complete packaged module including:
Stainless steel plate heat exchanger, for operation with sea water or slightly corrosive water (balneo-therapy,
thermal spring water).
Standard materials
Cover plates: Stainless steel AISI 316
Connections: Stainless steel AISI 316
Plates: Stainless steel AISI 316
Brazing material: Copper
Particulars required for quotation
To enable Baode's representative to make a specific quotation, enquiries should be accompanied by the following particulars:
– flow rates or heat load required
– temperature program
– physical properties of liquids in question
– desired working pressure
– maximum permitted pressure drop
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
| Model | BL14 | BL20 | BL26 | BL26C | BL50 | BL95 |
| Width, A [mm] | 78 | 76 | 111 | 124 | 111 | 191 |
| Height, B [mm] | 206 | 310 | 310 | 304 | 525 | 616 |
| Length, E [mm] | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance, C [mm] | 42 | 42 | 50 | 70 | 50 | 92 |
| Vertical port distance, D [mm] | 172 | 282 | 250 | 250 | 466 | 519 |
| Max pressure [Mpa] | 3 | 3 | 3 | 3/4.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 3.6 | 3.6 | 8.1 | 8.1 | 12.7 | 39 |
| Weight [kg] | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 | BL1400 | BL100 * | BL200 * |
| Width, A [mm] | 246 | 307 | 321 | 429 | 248 | 322 |
| Height, B [mm] | 528 | 696 | 738 | 1398 | 495 | 739 |
| Length, E [mm] | 13+2.36n | 13+2.75n | 13+2.7n | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontal port distance, C [mm] | 174 | 179 | 188 | 220 | 157 | 205.2 |
| Vertical port distance, D [mm] | 456 | 567 | 603 | 1190 | 405 | 631 |
| Max pressure [Mpa] | 3 | 3 | 2.1 | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 42 | 100 | 100 | 300 | 42 | 100 |
| Weight [kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
