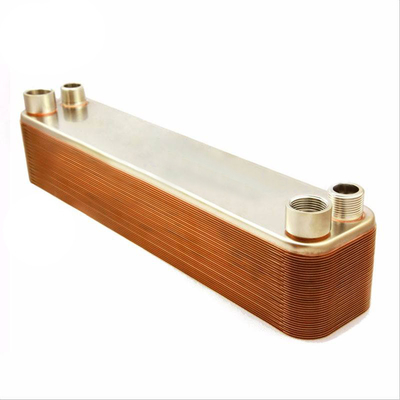

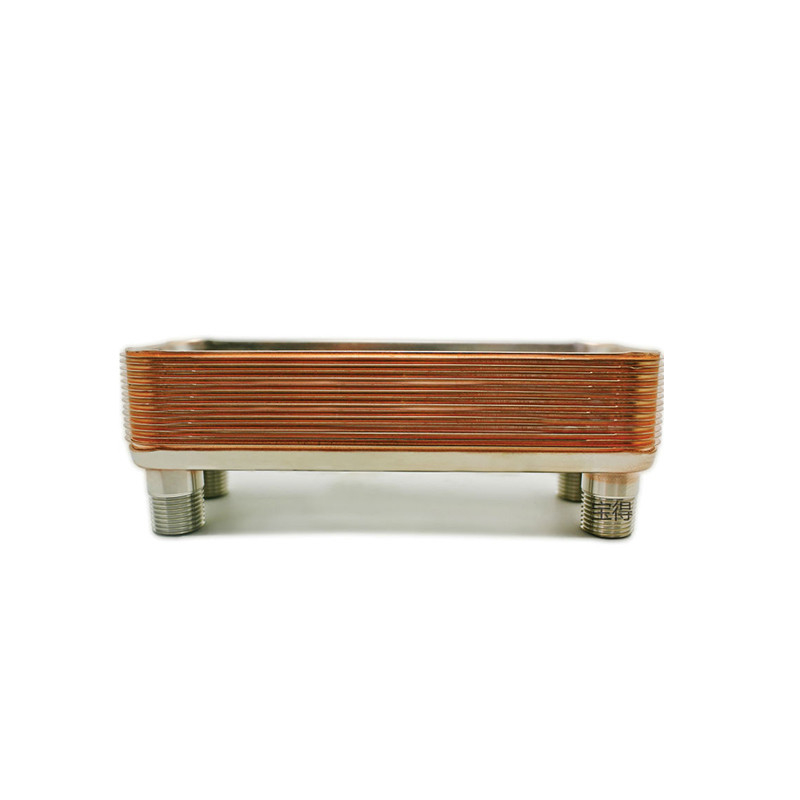

Factory Copper Brazed Plate Heat Exchange for Hydronic Heating Evaporator Condenser

Factory Copper Brazed Plate Heat Exchange for Hydronic Heating Evaporator Condenser

Product Description

Working principle
Brazing the stainless steel plates together eliminates the need for sealing gaskets and thick frame plates. As well as holding the plates together at the contact points, the brazing material seals the package. Baode's brazed heat exchangers are brazedat all contact points, ensuring optimal heat transfer efficiency and pressure resistance. The plates are designed to achievelongest possible lifetimes. Since virtually all material is used for heat transfer, the brazed plate heat exchanger is very compactin size and has a low weight and a low hold-up volume. The bphe (brazed plate heat exchanger ) consists of thin corrugatedstainless steel plates which are vacuum brazed together using copper as the brazing material. Copper brazed units can be used for numerous of applications. For food applications and applications involving aggressive fluids, nickel brazed units are requested.

The internal structure of plate heat exchanger is composed of plate group and shell.
1. Plate group: The core part of the plate heat exchanger is a plate group, which is composed of a series of metal plates parallel to the shell. Each plate of the panel group has a sealed edge and an open edge. There is a certain gap between the plates, forming a heat transfer channel.
2. Shell: The shell is the shell of the surrounding plate group, which has structural components such as a deflector, an inlet and outlet pipeline and a liquid distributor, used to guide and distribute liquid flow
3. Seal: The seal is a part that plays a sealing role at the interface between the plate group and the shell, and ensures that the heat medium will not leak by compressing and fixing the plate group.
In a process, two substances flow through the inlet and outlet of the plate heat exchanger respectively, and form a heat exchange between the plate groups, thereby achieving heat transfer. The liquid enters the housing through the liquid flow control device, flows into the deflector and then enters each channel separately. In each channel, the fluid transfers heat to the opposite fluid during a heat exchange process on the surface of the plate. The heat is then discharged through the deflector and outlet pipe. This cycle is repeated to achieve the purpose of heat transfer.

Model

BL1

Application
Swimming pool water heating. Simple, strong, compact and
highly reliable, Baode Brazed Plate heat exchangers are designed to efficiently reheat
and maintain temperature of water in swimming pools of all
dimensions and capacities from primary heat source such as
boiler, solar installation, heat pump etc.

Standard design
Complete packaged module including:
Stainless steel plate heat exchanger, for operation with sea water or slightly corrosive water (balneo-therapy,
thermal spring water).

Standard materials

Cover plates: Stainless steel AISI 316

Connections: Stainless steel AISI 316

Plates: Stainless steel AISI 316

Brazing material: Copper

Particulars required for quotation

To enable Baode's representative to make a specific quotation, enquiries should be accompanied by the following particulars:

– flow rates or heat load required

– temperature program

– physical properties of liquids in question

– desired working pressure

– maximum permitted pressure drop

Short delivery time.

High quality

Reasonable price

Customer made

Know-how design and customer support
