| Product Name: | Refrigerant High Pressure Copper Heat Exchanger For Water Brazed Plate Heat Exchanger | Main Application: | Car Engine Oil Cooler/hydraulic Heat Exchanger |
|---|---|---|---|
| Brazing Material: | Copper | Oil Cooler Type: | Copper Brazed Plate Heat Exchanger |

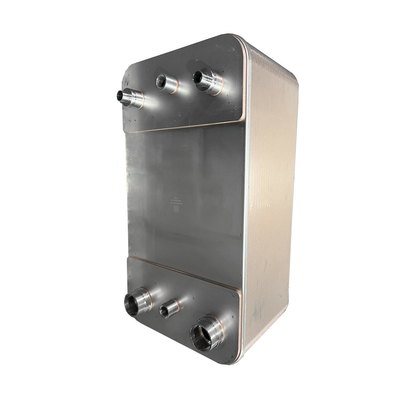

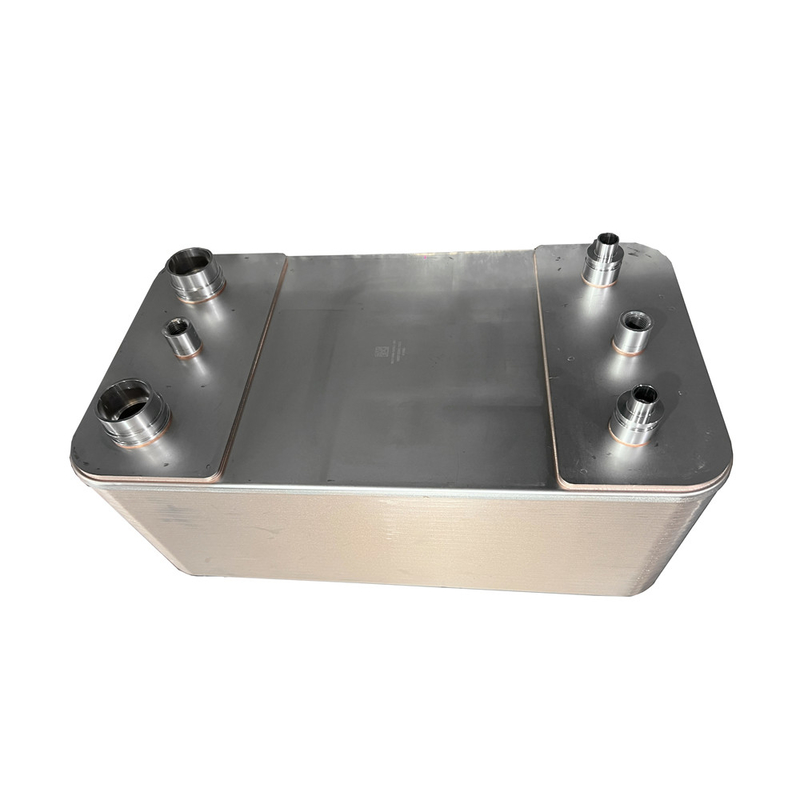

Refrigerant High Pressure Copper Heat Exchanger For Water Brazed Plate Heat Exchanger
Product Description
Brazed plate heat exchanger has the advantages of no gasket, no leakage, light weight, small size, low price, easy disassembly and installation, and high heat transfer efficiency. The structure is suitable for steam, water or process fluids and can be used with minimal temperature difference between the two fluids.
Brazed plate heat exchangers consist of stainless steel plates with an efficient heat transfer surface. Stainless steel plates are brazed at high temperatures with 99% copper purity to obtain a tight, leak-free and robust heat exchanger. Compact brazed plate heat exchangers are designed to consist of up to 20 corrugated stainless steel plates, with each second end plate turned upside down to form a large number of contact points between all plates.
When brazed, the contact points are also welded together, forming a compact plate that enables almost all plate structural materials (about 94% of the surface) to be used for heat transfer.
The plates form two separate channels in which the medium forms convective motion, resulting in high turbulence in the channel system, resulting in excellent heat transfer characteristics, and scaling is kept to an absolute minimum even at low speeds.
In operation and maintenance, if there is particulate matter in the water, a filter should be used, and most of the soft particulate matter can be removed by washing with water in reverse.
The compact brazed plate heat exchanger should be reversed washed every 3 to 5 years with citric acid or other acid that does not erode copper and stainless steel.
| Model | BL26 |
| Width, A [mm] | 111 |
| Height, B [mm] | 310 |
| Length, E [mm] | 10+2.36n |
| Horizontal port distance, C [mm] | 50 |
| Vertical port distance, D [mm] | 250 |
| Max pressure [Mpa] | 3 |
| Max flowrate [M3/h] | 8.1 |
| Weight [kg] | 1.3+0.12n |
Model
BL1
| Model | BL14 | BL20 | BL26 | BL26C | BL50 | BL95 |
| Width, A [mm] | 78 | 76 | 111 | 124 | 111 | 191 |
| Height, B [mm] | 206 | 310 | 310 | 304 | 525 | 616 |
| Length, E [mm] | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance, C [mm] | 42 | 42 | 50 | 70 | 50 | 92 |
| Vertical port distance, D [mm] | 172 | 282 | 250 | 250 | 466 | 519 |
| Max pressure [Mpa] | 3 | 3 | 3 | 3/4.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 3.6 | 3.6 | 8.1 | 8.1 | 12.7 | 39 |
| Weight [kg] | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 | BL1400 | BL100 * | BL200 * |
| Width, A [mm] | 246 | 307 | 321 | 429 | 248 | 322 |
| Height, B [mm] | 528 | 696 | 738 | 1398 | 495 | 739 |
| Length, E [mm] | 13+2.36n | 13+2.75n | 13+2.7n | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontal port distance, C [mm] | 174 | 179 | 188 | 220 | 157 | 205.2 |
| Vertical port distance, D [mm] | 456 | 567 | 603 | 1190 | 405 | 631 |
| Max pressure [Mpa] | 3 | 3 | 2.1 | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 42 | 100 | 100 | 300 | 42 | 100 |
| Weight [kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
