Baode heat exchanger equipment co.,Ltd

|
| Place of Origin: | China |
| Brand Name: | Baode |
| Certification: | CCS/UL/CE |
| Model Number: | BL30 series |
| Minimum Order Quantity: | 1 Units |
|---|---|
| Price: | USD 50-1000per Units |
| Packaging Details: | Plywood Box |
| Delivery Time: | 14-18 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Units per month |
| Product Name: | Copper Brazed Plate Heat Exchanger Heat Pump Condenser Gas Boiler Spare Parts | Main Application: | Car Engine Oil Cooler/hydraulic Heat Exchanger |
|---|---|---|---|
| Brazing Material: | Copper | Oil Cooler Type: | Copper Brazed Plate Heat Exchanger |

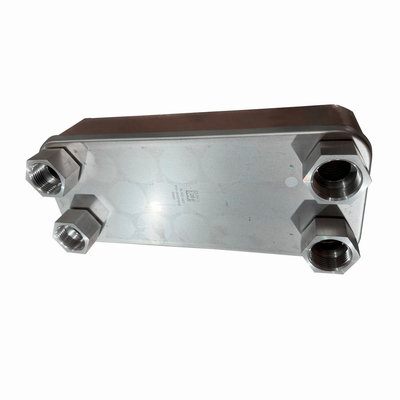

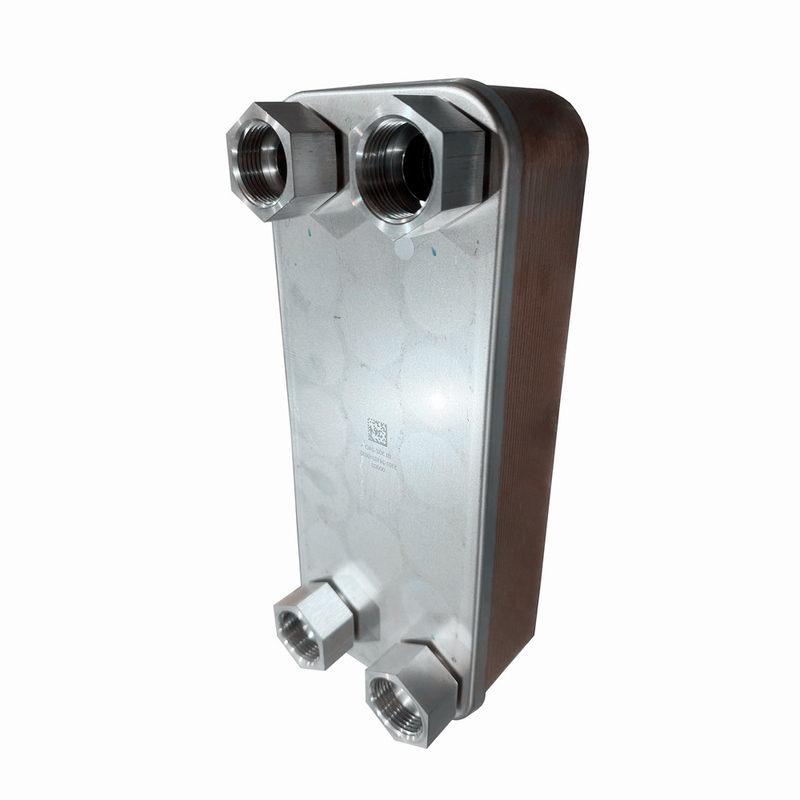

Copper Brazed Plate Heat Exchanger Heat Pump Condenser Gas Boiler Spare Parts
Product Description
Working principle
The brazed plate heat exchanger consists of a series of embossed concave and convex stainless steel plates; As shown in the figure below, two adjacent plates are rotated 180° to form a channel, and then pure copper or nickel is used as a brazing filler metal in a vacuum brazing furnace to braze a plate heat exchanger made of corrugated stainless steel plates. A channel is formed between the plates, and the distribution of corner holes on the corners makes the two media alternately flow in the channel. A large number of contact points provide good mechanical strength. The contact points and edges are sealed by copper brazing to ensure complete isolation between the two sides of the media and the outside world.
Heat transfer characteristic
1. Compact structure, easy to install
2. Light weight, only equivalent to 20~30% of the shell and tube heat exchanger
3. Durable, can withstand high temperature and pressure
4. Low fouling coefficient, high turbulence reduces the fouling coefficient, thus reducing the number of cleaning
5. High heat transfer efficiency, less water consumption
Application field
Textile paper industry: waste heat utilization of waste gas and liquid waste
Chemical industry: heating, cooling, evaporation, condensation processes
Power industry: as transformer oil cooler, turbine oil cooler
Metallurgical industry: as rolling mill, continuous casting machine, oxygen generator lubricating oil cooler, circulating water cooler
Regional central heating: steam water heating heat exchanger, intermediate heat exchange station heater, secondary system water heater
Refrigeration air conditioning and HVAC industry as evaporator, condenser, gas superheater, liquid subcooler, regenerator, etc
| Model | BL26 |
| Width, A [mm] | 111 |
| Height, B [mm] | 310 |
| Length, E [mm] | 10+2.36n |
| Horizontal port distance, C [mm] | 50 |
| Vertical port distance, D [mm] | 250 |
| Max pressure [Mpa] | 3 |
| Max flowrate [M3/h] | 8.1 |
| Weight [kg] | 1.3+0.12n |
Model
BL1
| Model | BL14 | BL20 | BL26 | BL26C | BL50 | BL95 |
| Width, A [mm] | 78 | 76 | 111 | 124 | 111 | 191 |
| Height, B [mm] | 206 | 310 | 310 | 304 | 525 | 616 |
| Length, E [mm] | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance, C [mm] | 42 | 42 | 50 | 70 | 50 | 92 |
| Vertical port distance, D [mm] | 172 | 282 | 250 | 250 | 466 | 519 |
| Max pressure [Mpa] | 3 | 3 | 3 | 3/4.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 3.6 | 3.6 | 8.1 | 8.1 | 12.7 | 39 |
| Weight [kg] | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 | BL1400 | BL100 * | BL200 * |
| Width, A [mm] | 246 | 307 | 321 | 429 | 248 | 322 |
| Height, B [mm] | 528 | 696 | 738 | 1398 | 495 | 739 |
| Length, E [mm] | 13+2.36n | 13+2.75n | 13+2.7n | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontal port distance, C [mm] | 174 | 179 | 188 | 220 | 157 | 205.2 |
| Vertical port distance, D [mm] | 456 | 567 | 603 | 1190 | 405 | 631 |
| Max pressure [Mpa] | 3 | 3 | 2.1 | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 42 | 100 | 100 | 300 | 42 | 100 |
| Weight [kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
